FT30-P Payload Drop System for Matrice 30

by Sozyin

SKU FT30-P
Original price $649.00 - Original price $649.00
Original price
$649.00
$649.00 - $649.00
Current price $649.00
1 Review
| Ask a question
Availability:
in stock, ready to be shipped

Key Features

Compatible with DJI Matrice 30 drone.
Based on DJI SDK, control the drop via the DJI pilot quick-release design, easy to install.
Max dropper weight 10Kg. (for DJI M30 drone, no more than 500g)

Compatibility

Matrice 30 Series

In the Box

FT30-P Payload Drop System for Matrice 30
Drop Rings
Screwdriver

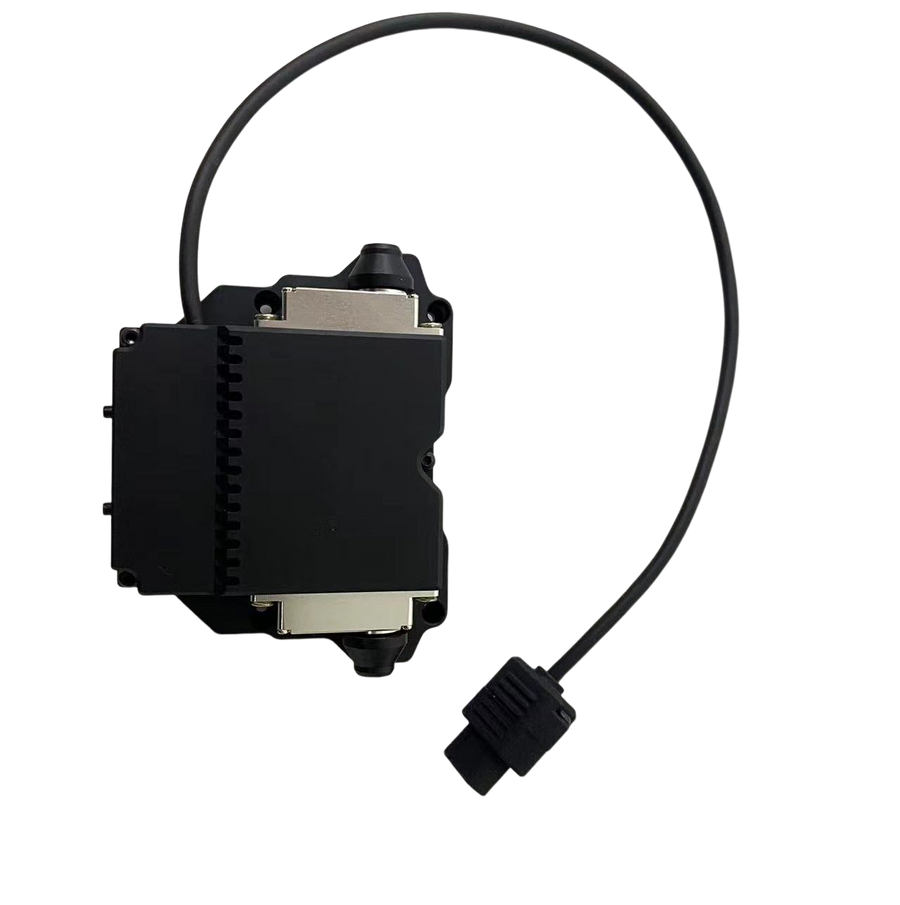

FT30-P Payload Drop System

The air payload dropper, and drop release mechanism system hooks for the DJI Matrice 30 drone, based on DJI SDK, are controlled via DJI Pilot. The drop hooks' loading capacity is 10Kg. Considering the drop capacity of the DJI M30 drone, we suggest a loading weight of no more than 500g.

The DJI M30 drone air payload dropper kits are seamlessly connected to Pilot2 control, It has a built-in dual-channel high-performance servo motor, and a single hook can drive a maximum of 5Kg, the unique slope sliding decoupling minimizes the size of the M30 drop release hooks without changing the structure of the drone.

How to Operate FT30-P for M30

  • On the rear side of the drop system, you will see two buttons associated with their respective side of the aircraft. These buttons control whether it is primed for loading or dropping.
  • A horizontal position is prepared for loading, and a vertical position is primed for dropping.
  • If it is vertical without a load attached, press the button to prepare it for loading.
  • Once the load is ready, press the button again to prime for dropping.
  • When primed and prepared to drop, unlock the system on the RC and click on the side you want to drop.
  • The parachute icons indicate which side is dropping: a parachute with a single dot below is the left side, and a parachute with double dots below is the right side.

Something to Note: The drop icons will change color from Green (the Hook is horizontal, and the drop load is not attached or primed for dropping) to Red (the Hook is vertical after the drop load is attached and primed for dropping).

Drop Test Video

Model: FT30-P
Compatible Models: Matrice 30, Matrice 30T
Size: 76mm*60mm*28mm
Weight: 90g
Loading Capacity: No more than 2kg within a single channel
Power of The System: 14w
Recommended Loading: No more than 500g within a single channel
Type of Interface: Type-C
Fixed Method: Fix with the bottom screw
Loading Method: Manual button control
Software Support: Pilot2
Status Hours: Supported
Outreach: The digital intelligence UART police lights are supported.
Control Methods: Pilot2 controls, mapping remote control buttons.
Control Distance: Be accordance with the UAV communication distance.
