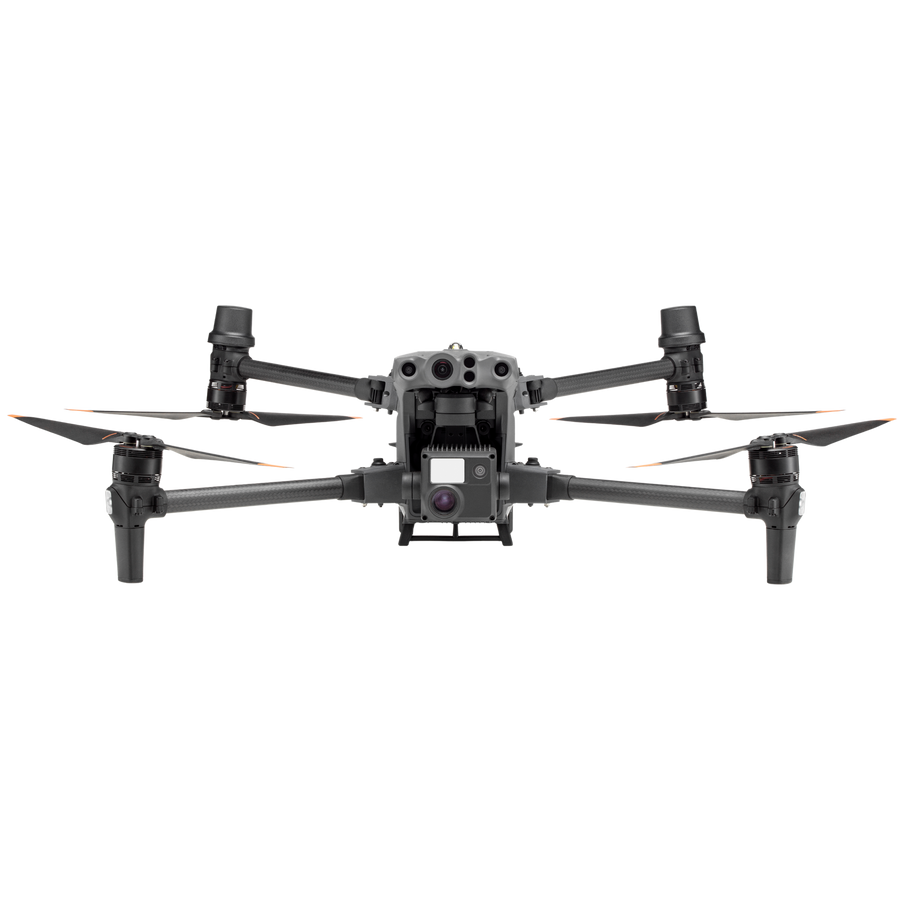

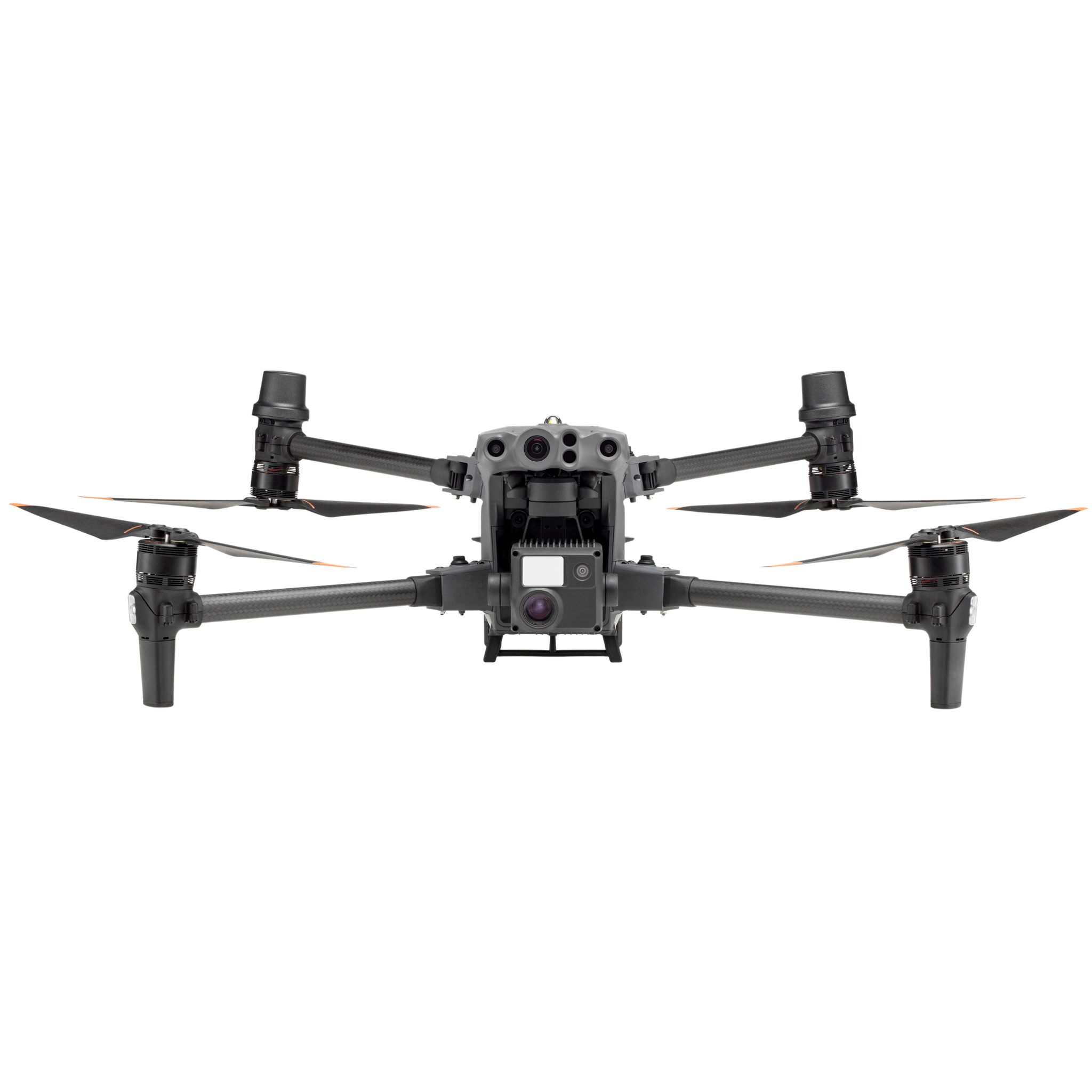

DJI M30 ENTERPRISE DRONE
Power In Portability
A balance of power and portability delivers higher operational efficiency
41-MIN MAX FLIGHT TIME
15 M/S WIND RESISTANCE
7000 M SERVICE CEILING
23 M/S MAX SPEED
Environmental Adaptability
With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.
Safe and Reliable
Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.
Redundancies and Backup Systems
Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
Enhanced Transmission
Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.
Lightweight and Portable
Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.
Capture Everything
The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.
Built For Commercial Drone Pilots
The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.
Enterprise Environmental Adaptability
IP54 PROTECTION
WATER AND DUSTPROOF
-20°C TO 50°C
CAPABLE IN CLIMATES BOTH HOT AND COLD
Improved Stability and Battery Life
Four Antenna OcuSync 3 Enterprise
Cover more area with stable video transmission and removable dual-antennas.
Extended Battery Life
Internal and external battery configuration powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.
Introducing the All-new DJI Pilot 2
A revamped Enterprise flight interface designed to improve piloting efficiency and flight safety.
Reimagined User Interface
Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.
Ergonomic Design For Safety and Efficiency
Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.
DJI FlightHub 2
Ground-to-Cloud Synergy | Master Your Mission Environment
Mission Live Streaming
Connect multiple users to one or many drone operations simultaneously, and keep teams updated with the latest developments thanks to low latency, high-resolution livestreaming.
Live Annotations
Highlight objects or areas of interest for efficient mission management and resource distribution. Annotations are visible to ground teams, pilots, or any team member for timely project alignment and task distribution.
Streamlined Team Communication
Synchronize valuable information such as teams position, drone status, mission details and more, in real time and across multiple device types, making team collaboration easier than ever.
BS30 Intelligent Battery Station
A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.

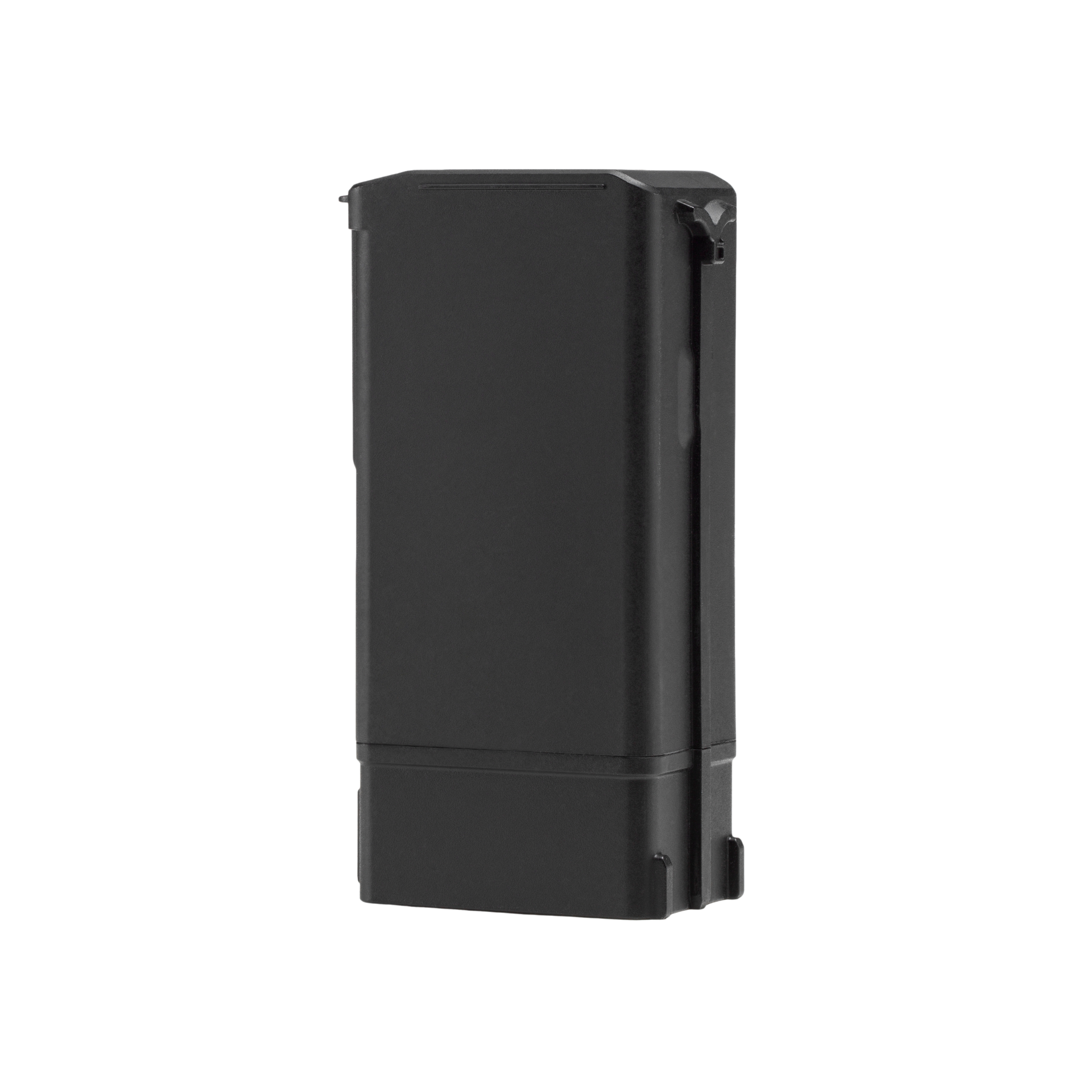

TB30 Intelligent Flight Battery
Each battery supports self-heating for cold environments, hot-swapping for fast turnarounds, and 400 charge cycles for increased operational efficiency.
Aircraft
| Operation Frequency | 2.4000-2.4835 GHz; 5.725-5.850 GHz |
|---|---|
| Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE |
| Hovering Accuracy | Vertical:'+/-0.1 m (Vision System enabled);'+/-0.5 m (N-mode with GPS);'+/-0.1 m (RTK) Horizontal:'+/-0.3 m (Vision System enabled);'+/-1.5 m (N-mode with GPS);'+/-0.1 m (RTK) (windless or breezy) |
| RTK Positioning Accuracy | 1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical) (fixed RTK enabled) |
| Max Angular Velocity | Pitch: 150 Degree /sec.; Yaw: 100 Degree /sec. |
| Max Tilt Angle | 35 Degree (N-mode and Forward Vision System enabled: 25 Degree ) |
| Max Ascent/Descent Speed | 6 m/s, 5 m/s |
| Max Tilt Descent Speed | 7 m/s |
| Max Horizontal Speed | 23 m/s |
| Max Service Ceiling Above Sea Level | 5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers) (without other payload) |
| Max Wind Resistance | 15 m/s 12 m/s during taking off and landing |
| Max Hover Time | 36 min |
| GNSS | 41 min |
| Ingress Protection Rating | IP55 |
| Dimensions (L x W x H) | Unfolded, excl. propellers: 18.5 x 23 x 8.4" (470 x 585 x 215mm) Folded: 14.3 x 8.4 x 7.6" (365 x 215 x 195mm) |
| Max Takeoff Weight | 8.8 lbs (4kg) |
TB30 Intelligent Flight Battery
| Capacity | 5880 mAh |
|---|---|
| Voltage | 26.1 V |
| Battery Type | LiPo 6S |
| Energy | 131.6 Wh |
| Operating Temperature | -4 Degree to 122 Degree F (-20 Degree to 50 Degree C) |
| Storage Temperature | 20 Degree to 30 Degree C (68 Degree to 86 Degree F) |
| Charging Temperature | -20 Degree to 40 Degree C (-4 Degree to 104 Degree F)(When the temperature is lower than 10 Degree C (50 Degree F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Chemical System | LiNiMnCoO2 |
Gimbal
| Angular Vibration Range | +/-0.01 Degree |
|---|---|
| Controllable Range | Pan:'+/-90 Degree Tilt: -120 Degree to'+45 Degree |
| Mechanical Range | Pan:'+/-105 Degree Tilt: -135 Degree to'+60 Degree Roll:'+/-45 Degree |
Zoom Camera
| Sensor | 1/2" CMOS, Effective pixels: 48M |
|---|---|
| Lens | Focal length: 21-75 mm (equivalent: 113-405 mm) Aperture: f/2.8-f/4.2 Focus: 5 m to Infinite |
Wide Camera
| Sensor | 1/2" CMOS, Effective pixels: 12M |
|---|---|
| Lens | DFOV: 84 Degree Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to Infinite |
FPV Camera
| Resolution | 1920 x 1080 |
|---|---|
| DFOV | 161 Degree |
| Frame Rate | 30 fps |
- DJI Matrice 30 x1
- TB30 Flight Battery x 2
- BS30 Battery Station x 1
- DJI RC Plus x 1
- DJI Pilot 2 x 1
- DJI FlightHub 2 (3 month subscription)
- DJI Care Enterprise (1 Year)
