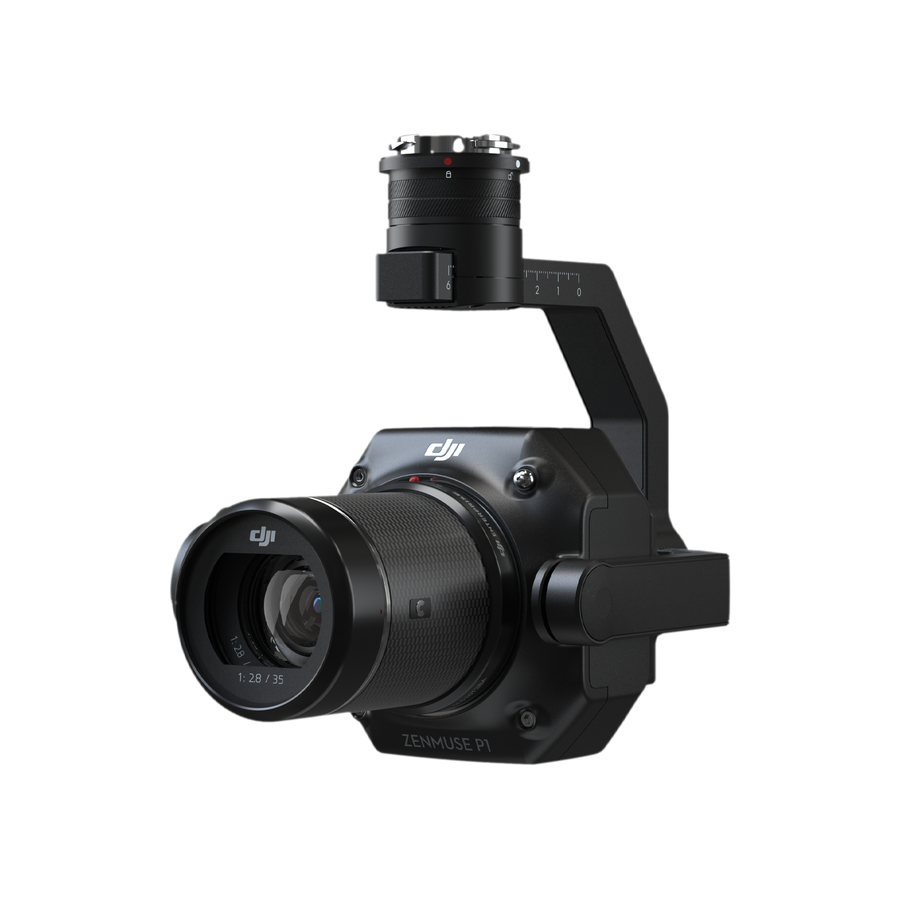

Zenmuse P1 - Service Replacement

by DJI
SKU CP.ZM.00000136.01.E
Save 20% Save 20%
Original price $6,250.00
Original price $6,250.00 - Original price $6,250.00
Original price $6,250.00
Current price $4,995.00
$4,995.00 - $4,995.00
Current price $4,995.00
Write a review
| Ask a question
Availability:
Low stock

Key Features

Accuracy without GCPs: 3 cm horizontally / 5 cm vertically
High Efficiency 3km covered in a single flight
45MP Full-Frame Sensor
3-axis Stabilized Gimbal, Smart Oblique Capture
Global Mechanical Shutter, Shutter speed 1/2000 Seconds

Compatibility

Matrice 300 RTK
Matrice 350 RTK

In the Box

Zenmuse P1 Gimbal and Camera × 1
MicroSD card (16GB) × 1
SD Card (128GB) × 1
Storage Case × 1
Camera Body Cap × 1
Lens Rear Cap × 1
Lens Cleaning Cloth × 1
Lens Cap × 1
DJI DL 35mm Lens × 1
DJI Terra Activation Code × 1

**Note: Terra activation code is a card inside the box, for 6 months of DJI Terra Electricity

Zenmuse P1

The New Benchmark for Aerial Surveying
The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

Extraordinary Efficiency
The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covers 3 km2 in a single flight.

Remarkable Accuracy
Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with real-time position and orientation compensation technology.

Robust Versatility
Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.

Efficiency to Cover It All
Full-frame Camera

  • 45MP Full-frame Sensor
  • 4.4microm Pixel Size
  • Low-noise, high-sensitivity imaging extends daily operational time
  • Take a photo every 0.7 s during the flight
  • TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level

Flexibility to Capture It All
Multiple Fixed-focus Lens Options

  • Global Mechanical Shutter, Shutter Speed 1/2000 Seconds
  • Sends the median exposure pulse in microseconds
  • Supports 24/35/50mm lenses with DJI DL mounts

Smart Oblique Capture
Cover 7.5 km2 in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post-processing by 20% to 50%.

Fieldwork Report
Verify data quality immediately post-flight by checking the position data and the number of images acquired, as well as RTK status and positioning accuracy.

2D Orthomosaic Mission
Generate orthomosaics without GCPs using the P1, perfect for medium to large-area operations.

3D Oblique Mission
Effortlessly acquire oblique images from multiple angles that meet 3D modeling requirements across industries such as urban planning and centimeter-level accurate cadastral surveys to serve 3D reality models and smart city planning.

Detailed Modeling Mission
Acquire ultra-high resolution image data of vertical or slanted surfaces from a safe distance that faithfully recreates fine textures, structures, and features, for detailed reconstructions, geological surveys, heritage site conservation, hydraulic engineering, and more.

Real-time Mapping Mission
Gather geographic information of large areas in real-time using DJI Terra so that teams can make crucial decisions quickly on-site.

Topographic Mapping
Capture data that meet the 1:500 scale accuracy requirements without GCPs.

Cadastral Surveying
Quickly generate centimeter-level accurate 3D reality models.

AEC and Surveying
Manage the full project lifecycle with 2D and 3D drone data.

Natural Resource Management
Measure, classify, or determine the ownership of water bodies and forests.

Geological Investigation
Safely gather millimeter-level accurate aerial data of geological hazard sites.

Disaster Site Modeling
Gain real-time overviews of vast disaster-struck areas to help teams make critical decisions.

General

Weight

ZENMUSE P1

Dimensions

198×166×129 mm

Ingress Protection Rating

Approx. 800 g

Operating Temperature

20W

Storage Temperature

IP4X

Laser Safety

Matrice 300 RTK

Supported Aircraft

-20° to 50° C (-4° to 122° F)

Camera

Sensor

Sensor size (Still): 35.9×24 mm (Full frame)
Sensor size (Max video recording area): 34×19 mm
Effective Pixels: 45MP
Pixel size: 4.4 μm

Supported Lenses

DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°
DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°

Supported SD Cards

SD: UHS-I rating or above; Max capacity: 512 GB

Storage Files

Photo / GNSS Raw Observation Data/ Image Log File

Video

Video Format

MP4,MOV

Video Resolution

16:9 (1920×1080)
16:9 (3840×2160)*
Only 35mm lens supported

Frame Rate

60fps

Gimbal

Stabilized System

3-axis (tilt, roll, pan)

Angular Vibration Range

±0.01°

Mount

Detachable DJI SKYPORT

Mechanical Range

Tilt: -130° to +40°;
Roll: -55° to +55°;
Pan: ±320°

General

Product Name

ZENMUSE P1

Dimensions

198×166×129 mm

Weight

Approx. 800 g

Power

20W

IP Rating

IP4X

Supported Aircraft

Matrice 300 RTK

Operating Temperature Range

-20° to 50° C (-4° to 122° F)

Storage Temperature Range

-20° to 60° C (-4° to 140° F)

Absolute Accuracy

Horizontal: 3 cm, Vertical: 5 cm *
Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.

Camera

Sensor

Sensor size (Still): 35.9×24 mm (Full frame)
Sensor size (Max video recording area): 34×19 mm
Effective Pixels: 45MP
Pixel size: 4.4 μm

Supported Lenses

DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°
DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°

Supported SD Cards

SD: UHS-I rating or above; Max capacity: 512 GB

Storage Files

Photo / GNSS Raw Observation Data/ Image Log File

Photo Size

3:2 (8192×5460)

Operation Modes

Photo, Video, Playback

Minimum photo interval

0.7 s

Shutter Speed

Mechanical Shutter Speed: 1/2000*-1 s
Electronic Shutter Speed: 1/8000-1 s
Aperature value no larger than f/5.6

Aperture Range

f/2.8-f/16

ISO Range

Photo: 100-25600
Video: 100-25600

Video

Video Format

MP4,MOV

Video Resolution

16:9 (1920×1080)
16:9 (3840×2160)*
Only 35mm lens supported

Frame Rate

60fps

Gimbal

Stabilized System

3-axis (tilt, roll, pan)

Angular Vibration Range

±0.01°

Mount

Detachable DJI SKYPORT

Mechanical Range

Tilt: -130° to +40°;
Roll: -55° to +55°;
Pan: ±320°
