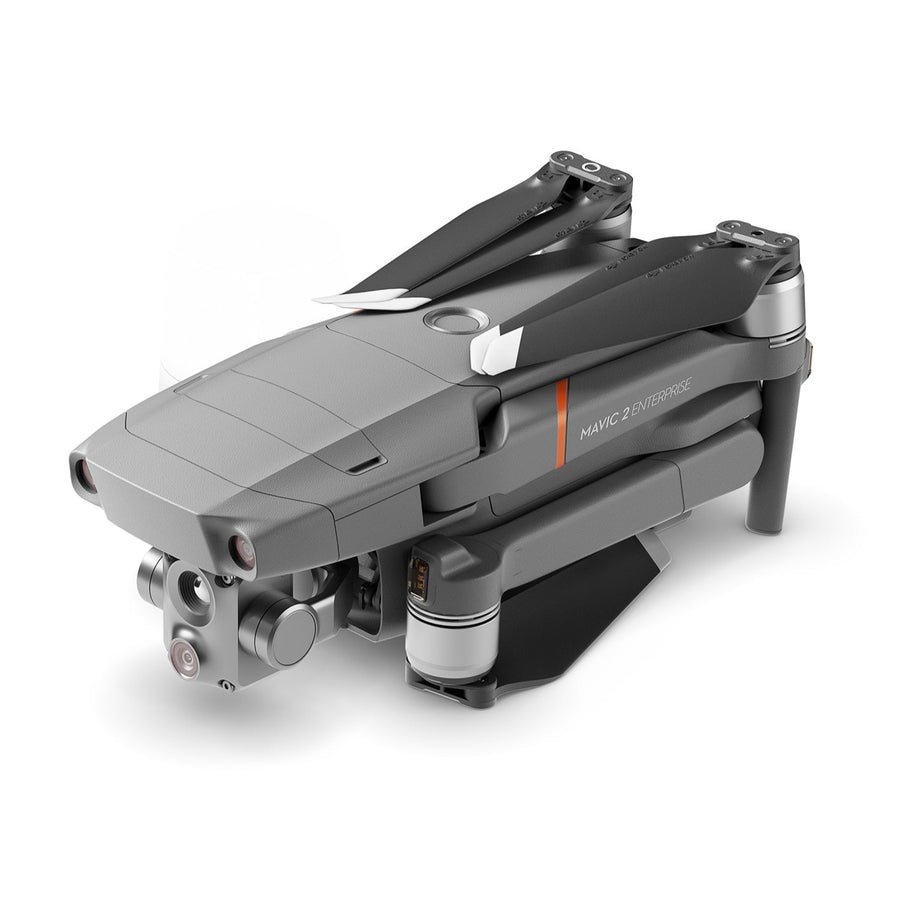

Mavic 2 Enterprise Advanced
- 640 × 512 px Thermal Camera
- 48MP Visual Camera
- 32× Digital Zoom
- Centimeter-level Positioning with RTK
- 10 km Full HD Transmission
- Omnidirectional Obstacle Sensing
SKU: CP.EN.00000337.01
Category: DJI, DJI Enterprise, Drones, Enterprise Solutions, MAVIC 2 ENTERPRISE
Aircraft
| Takeoff Weight (Without Accessories) | 909g |
| Max Takeoff Weight | 1100g |
| Dimensions (L×W×H) |
Folded: 214×91×84mm Unfolded: 322×242×84mm Unfolded+Spotlight: 322×242×114mm Unfolded+Beacon: 322×242×101mm Unfolded+Speaker: 322×242×140mm Unfolded+RTK Module: 322x242x125mm |
| Diagonal Distance | 354 mm |
| Max Ascent Speed | 6 m/s (S-mode) 5 m/s (P-mode) 4 m/s (S-mode with accessories) 4 m/s (P-mode with accessories) |
| Max Descent Speed | Descend Vertically 5 m/s (S-mode) 4 m/s (P-mode) Tilt 7 m/s (S-mode) 4 m/s (P-mode) |
| Max Speed |
72 kph (S-mode, without wind) 50 kph (P-mode, without wind) |
| Max Service Ceiling Above Sea Level | 6000 m |
| Max Flight Time |
31 min (measured while flying at 25 kph in windless conditions) 28 min (RTK module attached) 29 min (with beacon turned on) 30 min (with beacon turned off) 24 min (with the spotlight turned on) 28 min (with the spotlight turned off) 27 min (with the speaker turned on) 28 min (with the speaker turned off) |
| Max Wind Speed Resistance | 10 m/s (scale 5) |
| Max Tilt Angle |
35°(S-mode, with remote controller) 25°(P-mode) |
| Max Angular Velocity |
200°/s (S-mode) 100°/s (P-mode) |
| Operating Temperature | -10° to 40° C |
| GNSS | GPS+GLONASS |
| Hovering Accuracy Range | Vertical: ± 0.1 m (with RTK) ± 0.1 m (with Vision Positioning) ± 0.5 m (with GPS Positioning) Horizontal: ± 0.1 m (with RTK) ± 0.3 m (with Vision Positioning) ± 1.5 m (with GPS Positioning) |
| Operating Frequency |
2.400-2.4835 GHz; 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.400 - 2.4835 GHz FCC: ≤26 dBm； CE: ≤20 dBm； SRRC: ≤20 dBm; MIC: ≤20 dBm 5.725 - 5.850 GHz FCC: ≤26 dBm; CE: ≤14 dBm; SRRC: ≤26 dBm |
| Internal Storage |
24 GB |
Camera
| M2EA Thermal Camera | Sensor | Uncooled VOx Microbolometer |
| M2EA Thermal Camera | Focal Length | Approx. 9mm 35 mm format equivalent: Approx. 38mm |
| M2EA Thermal Camera | Sensor Resolution | 640×512 @30Hz |
| M2EA Thermal Camera | Digital Zoom | 16 × |
| M2EA Thermal Camera | Pixel Pitch | 12 μm |
| M2EA Thermal Camera | Spectral Band | 8-14 μm |
| M2EA Thermal Camera | Photo Format | R-JPEG |
| M2EA Thermal Camera | Video Format | MP4 |
| M2EA Thermal Camera | Metering Method | Spot Meter, Area Measurement |
| M2EA Thermal Camera | FFC | Auto/Manual |
| M2EA Visual Camera | Sensor | 1/2” CMOS, Effective Pixels: 48 M |
| M2EA Visual Camera | Lens | FOV: 84°<br> 35 mm format equivalent: 24 mm Aperture: f/2.8<br> Focus: 1 m to ∞ |
| M2EA Visual Camera | ISO Range | Video: 100-12800 (auto) Photos: 100-1600 (auto) |
| M2EA Visual Camera | Digital Zoom | 32× |
| M2EA Visual Camera | Max Image Size | 8000×6000 |
| M2EA Visual Camera | Still Photography Modes | Single shot Interval: 2/3/5/7/10/15/20/30/60 s Panorama: Sphere |
| M2EA Visual Camera | Video Resolution | 3840×2160@30fps 1920×1080@30fps |
| M2EA Visual Camera | Photo Format | JPEG |
| M2EA Visual Camera | Video Format | MP4 |
| Gimbal | Mechanical Range | Tilt: -135°- +45°<br>Pan: -100°- +100° |
| Gimbal | Controllable Range | Tilt: -90°- +30°<br>Pan: -75°- +75° |
| Gimbal | Stabilization | 3-axis (tilt, roll, pan) |
| Gimbal | Max control speed | 120°/s |
| Gimbal | Angular Vibration Range | ±0.005° |
| Mavic 2 Enterprise Dual | Mavic 2 Enterprise Advanced | |
| Endurance | 31 Minutes |
31 Minutes (Without RTK) 27 Minutes (With RTK) |
| Visual Camera |
12MP, 1/2.3" CMOS 4x digital zoom |
48MP, 1/2" CMOS 32x Digital Zoom |
| Thermal Camera | 160x120, 9Hz |
640x512, 30Hz, 16x digital zoom Support post-processing |
| RTK | Not Supported | Supports Network or Custom RTK |
| Remote Controller | DJI Smart Controller, Remote Controller (Without Display) | DJI Smart Controller (Only) |
|
Max. Waypoints |
99 | 240 |
| Ascent/Descent Speed |
Max. Ascent Speed: 5m/s Max. Descent Speed: 3m/s |
Max. Ascent Speed: 6m/s Max. Vertical Descent Speed: 5m/s; Max. Tilt Descent Speed: 7m/s |
- Effective Pixels of Visual Camera increased by 4x
- Effective Pixels of Thermal camera increase by 17x; Frame rate increased to 30Hz
- RTK Module for high positioning accuracy
- Support more complex missions
- Powerful flight performance
| Mavic 2 Enterprise Advanced | EVO II DUAL 640T | |
| Endurance | 31 minutes | 40 minutes |
| Visual Camera |
48MP, 1/2" CMOS 32x Digital Zoom |
48MP, 1/2" CMOS 8x Digital Zoom |
| Thermal Camera |
640x512, 30Hz 16x Digital Zoom |
640x512, 30Hz 8x Digital Zoom |
| RTK | RTK Supported | No RTK Support* (in US) |
| Transmission Range | 10km (FCC) | 9km (FCC) |
| Size | Folded: 214 x 91 x 84 mm | Folded: 228 x 133 x 110 mm |
| Weight | 909 g | 1150 g |
Advantages
- Price is more accessible
- Smaller and lighter
- Better transmission range
- Larger zoom capabilities
- Radiometric & RTK capability (region-based)
- After two years of market appraisal, the Mavic 2 airframe has fully demonstrated its stability, reliability, and safety.
Disadvantages
- Shorter Flight Time - Can change batteries
- Six Directional vision sensor - The actual effect is not as stable as the Mavic 2 series. DJI has a deep accumulation in the perception algorithm and the visual positioning effect exceeds competitors.
