DJI Matrice 30T (M30T) Worry-Free Basic

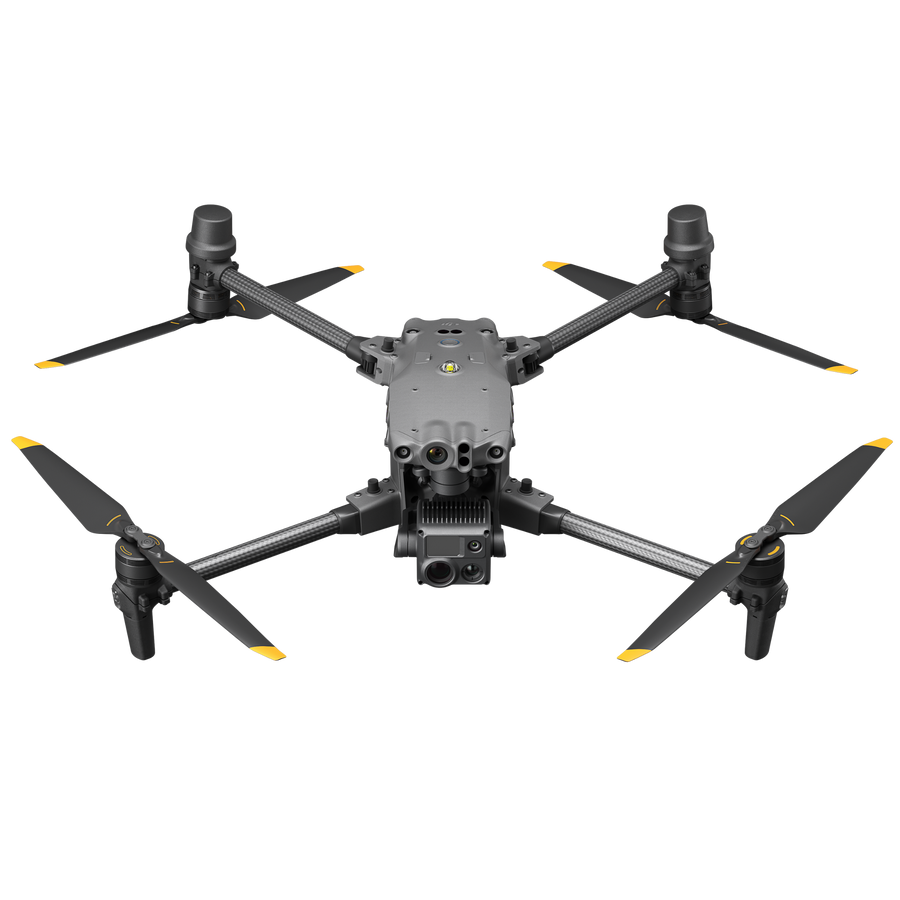

DJI M30T ENTERPRISE DRONE

"Thanks for all your help on this. We got our M30T in the air yesterday; it blows our Mavic 2’s out of the water by a long shot."

Detective. Steven Vanek
Strongsville Police

"The 30T is amazing and so much bigger than the Mavic 2 Enterprise.  We have already used it for some training and demonstration purposes and are exceptionally impressed by the features that it comes with.  Particularly the zoom and the thermal capabilities.  It is easy to maneuver, quiet for its size, and intuitive to use.  We are very happy that we made the switch and once again your customer service was phenomenal.  Thanks again!"

Captain, Jason Burke
Windham Police

Power In Portability
A balance of power and portability delivers higher operational efficiency

41-MIN MAX FLIGHT TIME
15 M/S WIND RESISTANCE
7000 M SERVICE CEILING
23 M/S MAX SPEED

Environmental Adaptability
With IP55 protection, the M30T can easily handle adverse weather and temperatures ranging from -20° C～50° C.

Safe and Reliable
Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

Redundancies and Backup Systems
Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

Enhanced Transmission
Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.

Lightweight and Portable
Compact and foldable, the M30 Series is easy to pack up, carry, and deploy. Protect your drone with a third-party hard case.

Capture Everything

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

Built For Commercial Drone Pilots
The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.

Enterprise Environmental Adaptability
IP54 PROTECTION
WATER AND DUSTPROOF
-20°C TO 50°C
CAPABLE IN CLIMATES BOTH HOT AND COLD

Improved Stability and Battery Life
Four Antenna OcuSync 3 Enterprise
Cover more area with stable video transmission and removable dual-antennas.

Extended Battery Life
Internal and external battery configuration powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.

Introducing the All-new DJI Pilot 2
A revamped Enterprise flight interface designed to improve piloting efficiency and flight safety.

Reimagined User Interface
Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.

Ergonomic Design For Safety and Efficiency
Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.

DJI FlightHub 2
Ground-to-Cloud Synergy | Master Your Mission Environment

Mission Live Streaming
Connect multiple users to one or many drone operations simultaneously, and keep teams updated with the latest developments thanks to low latency, high-resolution livestreaming.

Live Annotations
Highlight objects or areas of interest for efficient mission management and resource distribution. Annotations are visible to ground teams, pilots, or any team member for timely project alignment and task distribution.

Streamlined Team Communication
Synchronize valuable information such as teams position, drone status, mission details and more, in real time and across multiple device types, making team collaboration easier than ever.

BS30 Intelligent Battery Station
A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.

TB30 Intelligent Flight Battery
Each battery supports self-heating for cold environments, hot-swapping for fast turnarounds, and 400 charge cycles for increased operational efficiency.

Aircraft

Dimensions
(unfolded, excl. propellers)

470×585×215 mm (L×W×H)

Dimensions (folded)

365×215×195 mm (L×W×H)

Diagonal Wheelbase

668 mm

Weight (incl. two batteries)

3770 ± 10 g

Max Takeoff Weight

4069 g

Max Takeoff Weight for C2 Certification in EU

3998 g

Operation Frequency[1]

2.4000-2.4835 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)

Hovering Accuracy
(windless or breezy)

Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)

RTK Positioning Accuracy
(fixed RTK enabled)

1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)

Max Angular Velocity

Pitch: 150°/sec.; Yaw: 100°/sec.

Max Pitch Angle

35° (N-mode and Forward Vision System enabled: 25°)

Max Ascent/Descent Speed

6 m/s, 5 m/s

Max Tilt Descent Speed

7 m/s

Max Horizontal Speed

23 m/s

Max Service Ceiling Above Sea Level (without other payload)

5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers)

Max Wind Resistance

12 m/s

Max Hover Time [2]

36 min

Max Flight Time[2]

41 min

Motor Model

3511

Propeller Model

1671
1676 High Altitude (not included)

Ingress Protection Rating[3]

IP55

GNSS

GPS+Galileo+BeiDou+GLONASS
(GLONASS is supported only when RTK module is enabled)

Operating Temperature

-20° to 50° C (-4° to 122° F)

Class

C2 (EU)

Gimbal

Angular Vibration Range

±0.01°

Controllable Range

Pan: ±90°
Tilt: -120° to +45°

Mechanical Range

Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°

Zoom Camera

Sensor

1/2" CMOS, Effective pixels: 48M

Lens

Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to ∞

Exposure Compensation

±3 ev (using 1/3 ev as step length)

Electronic Shutter Speed

Auto Mode:
Photo: 1/8000-1/2 s
Video: 1/8000-1/30 s
M Mode:
Photo: 1/8000-8 s
Video: 1/8000 -1/30 s

ISO Range

100-25600

Max. Video Resolution

3840×2160

Max Photo Size

8000×6000

Wide Camera

Sensor

1/2" CMOS, Effective pixels: 12M

Lens

DFOV: 84°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Exposure Compensation

±3 ev (using 1/3 ev as step length)

Electronic Shutter Speed

Auto Mode:
Photo: 1/8000-1/2 s
Video: 1/8000-1/30 s

M Mode:
Photo: 1/8000-8 s
Video: 1/8000-1/30 s

ISO Range

100-25600

Max. Video Resolution

3840×2160

Photo Size

4000×3000

Thermal Camera

Thermal Imager

Uncooled VOx Microbolometer

Lens

DFOV: 61°
Focal length: 9.1 mm (equivalent: 40 mm)
Aperture: f/1.0
Focus: 5 m to ∞

Noise Equivalent Temperature Difference (NETD)

≤50 mK@F1.0

Infrared Temperature Measurement Accuracy[4]

±2°C or ±2% (using the larger value)

Video Resolution

Infrared Image Super-resolution Mode: 1280×1024
Normal Mode: 640×512

Photo Size

Infrared Image Super-resolution Mode: 1280×1024
Normal Mode: 640×512

Pixel Pitch

12 um

Temperature Measurement Method

Spot Meter, Area Measurement

Temperature Measurement Range

High Gain Mode: -20° to 150° C (-4° to 302° F)
Low Gain Mode: 0° to 500° C (32° to 932° F)

Temperature Alert

Supported

Palette

White Hot/Black Hot/Tint/Iron Red/Hot
Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

FPV Camera

Resolution

1920×1080

DFOV

161°

Frame Rate

30 fps

Laser Module

Wavelength

905 nm

Max Laser Power

3.5 mW

Single Pulse Width

6 ns

Measurement Accuracy

± (0.2 m + D×0.15%)
D is the distance to a vertical surface

Measuring Range

3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Safety Regulation Level

Class 1M

Accessible Emission Limit (AEL)

304.8 nJ

Reference Aperture

18mm length, 18mm width (20.3mm diameter if equivalent to circular)

Max Laser Pulse Emission Power Within 5 Nanoseconds

60.96 W

Vision Systems

Obstacle Sensing Range

Forward: 0.6-38 m
Upward/Downward/Backward/Sideward: 0.5-33 m

FOV

65° (H), 50° (V)

Operating Environment

Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

Obstacle Sensing Range

0.1 to 10 m

FOV

30°

Operating Environment

Large, diffuse, and reflective obstacles (reflectivity >10%)
