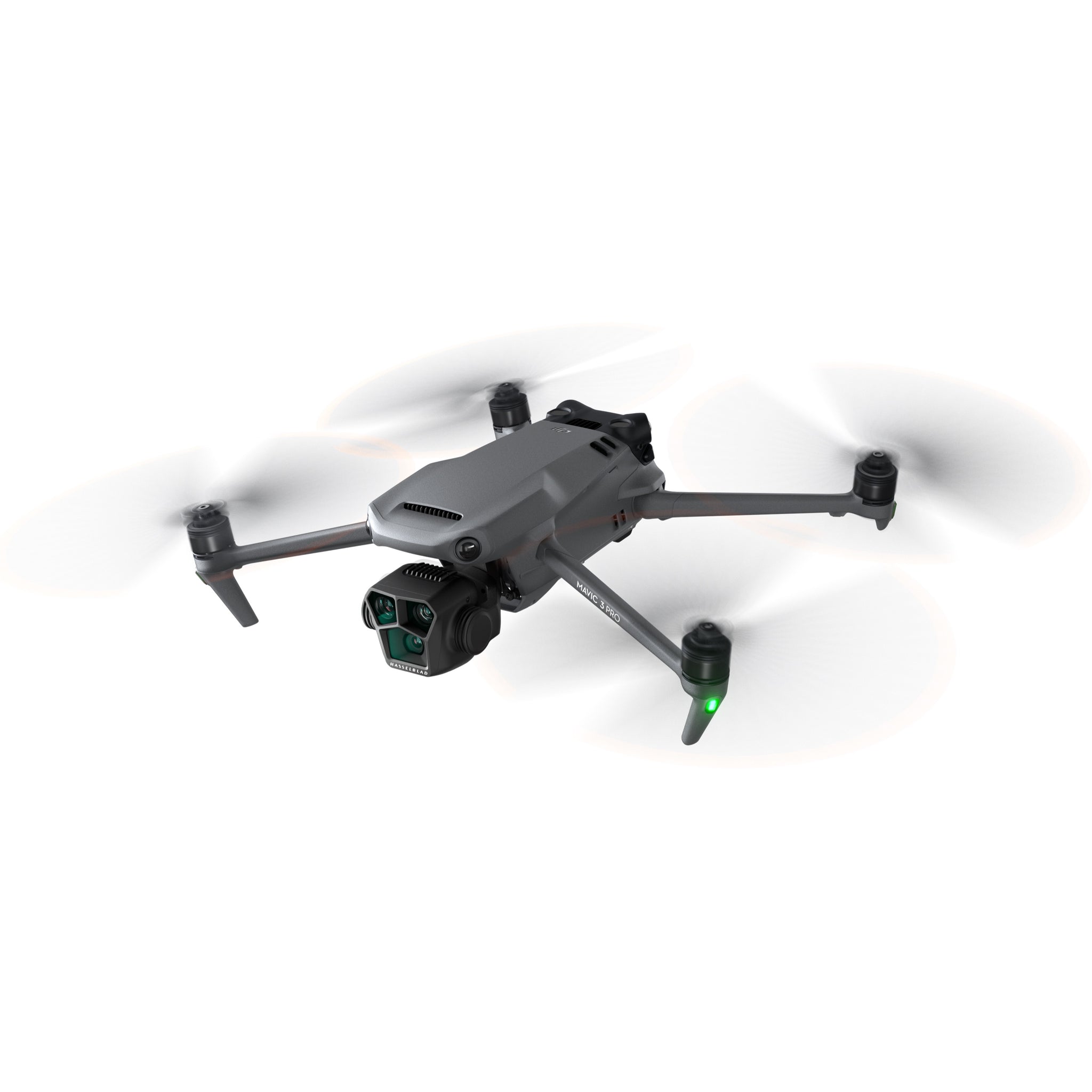

DJI Mavic 3 Pro Fly More Combo (DJI RC Pro)

Aircraft

Takeoff Weight:

• Mavic 3 Pro: 958 g
• Mavic 3 Pro Cine: 963 g

Dimensions:

• Folded (without propellers): 231.1×98×95.4 mm (L×W×H)
• Unfolded (without propellers): 347.5×290.8×107.7 mm (L×W×H)

Max Ascent Speed:

• 8 m/s

Max Descent Speed:

• 6 m/s

Max Horizontal Speed (at sea level, no wind):

• 21 m/s

Max Takeoff Altitude:

• 6000 m

Max Flight Time:

• 43 minutes
  Measured in a controlled test environment. Specific test conditions are as follows: flying at a constant speed of 32.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

Max Hovering Time:

• 37 minutes
  Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

Max Flight Distance:

• 28 km

Max Wind Speed Resistance:

• 12 m/s

Max Tilt Angle:

• 35°

Operating Temperature:

• -10° to 40° C (14° to 104° F)

Global Navigation Satellite System:

• GPS + Galileo + BeiDou

Hovering Accuracy Range:

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)
• Horizontal:
  ±0.3 m (with vision positioning)
  ±0.5 m (with high-precision positioning system)

Internal Storage:

• Mavic 3 Pro: 8 GB (approx. 7.9GB available space)
• Mavic 3 Pro Cine: 1 TB (approx. 934.8GB available space)

Camera

Image Sensor:

• Hasselblad Camera: 4/3 CMOS, Effective Pixels: 20 MP
• Medium Tele Camera: 1/1.3″ CMOS, Effective Pixels: 48 MP
• Tele Camera: 1/2″ CMOS, Effective Pixels: 12 MP

Lens:

• Hasselblad Camera
  FOV: 84°
  Format Equivalent: 24mm
  Aperture: f/2.8-f/11
  Focus: 1 m to ∞
• Medium Tele Camera
  FOV: 35°
  Format Equivalent: 70mm
  Aperture: f/2.8
  Focus: 3 m to ∞
• Tele Camera
  FOV: 15°
  Format Equivalent: 166mm
  Aperture: f/3.4
  Focus: 3 m to ∞

ISO Range:

• Video
  Normal and Slow Motion:
  100-6400 (Normal)
  400-1600 (D-Log)
  100-1600 (D-Log M)
  100-1600 (HLG)
• Night:
  800-12800 (Normal)
• Photo
  100-6400

Shutter Speed:

• Hasselblad Camera: 8-1/8000 s
• Medium Tele Camera: 2-1/8000 s
• Tele Camera: 2-1/8000 s

Max Image Size:

• Hasselblad Camera: 5280×3956
• Medium Tele Camera: 8064×6048
• Tele Camera: 4000×3000

Still Photography Modes:

• Hasselblad Camera
  Single Shot: 20 MP
  Burst Shooting: 20 MP, 3/5/7 frames
  Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
  Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s
• Medium Tele Camera
  Single Shot: 12 MP or 48 MP
  Burst Shooting: 12 MP or 48 MP, 3/5/7 frames
  Automatic Exposure Bracketing (AEB): 12 MP or 48 MP, 3/5 frames at 0.7 EV step
  Timed:
  12 MP: 2/3/5/7/10/15/20/30/60 s
  48 MP: 7/10/15/20/30/60 s
• Tele Camera
  Single Shot: 12 MP
  Burst Shooting: 12 MP, 3/5/7 frames
  Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 0.7 EV step
  Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s

Photo Format:

• JPEG/DNG (RAW)

Video Resolution:

• Hasselblad Camera
  Apple ProRes 422 HQ
  Apple ProRes 422
  Apple ProRes 422 LT
  5.1K: 5120×2700@24/25/30/48/50fps
  DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
  4K: 3840×2160@24/25/30/48/50/60/120*fps
  H.264/H.265
  5.1K: 5120×2700@24/25/30/48/50fps
  DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
  4K: 3840×2160@24/25/30/48/50/60/120*fps
  FHD: 1920×1080@24/25/30/48/50/60/120*/200*fps
  Recording frame rates. The corresponding video plays as slow-motion video.
• Medium Tele Camera
  Apple ProRes 422 HQ
  Apple ProRes 422
  Apple ProRes 422 LT
  4K: 3840×2160@24/25/30/48/50/60fps
  H.264/H.265
  4K: 3840×2160@24/25/30/48/50/60fps
  FHD: 1920×1080@24/25/30/48/50/60fps
• Tele Camera
  Apple ProRes 422 HQ
  Apple ProRes 422
  Apple ProRes 422 LT
  4K: 3840×2160@24/25/30/48/50/60fps
  H.264/H.265
  4K: 3840×2160@24/25/30/50/60fps
  FHD: 1920×1080@24/25/30/50/60fps

  Only the Cine version supports ProRes recording.

Video Format:

• MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
• MOV (Apple ProRes 422 HQ/422/422 LT)

  Only the Cine version supports ProRes recording.

Max Video Bitrate:

• Hasselblad Camera:
  H.264/H.265: 200 Mbps
  Apple ProRes 422 HQ: 3772 Mbps
  Apple ProRes 422: 2514 Mbps
  Apple ProRes 422 LT: 1750 Mbps
• Medium Tele Camera:
  H.264/H.265: 160 Mbps
  Apple ProRes 422 HQ: 1768 Mbps
  Apple ProRes 422: 1178 Mbps
  Apple ProRes 422 LT: 821 Mbps
• Tele Camera:
  H.264/H.265: 160 Mbps
  Apple ProRes 422 HQ: 1768 Mbps
  Apple ProRes 422: 1178 Mbps
  Apple ProRes 422 LT: 821 Mbps

Supported File System:

• exFAT

Color Mode and Sampling Method:

• Hasselblad Camera
  Normal:
  10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
  8-bit 4:2:0 (H.264/H.265)
  D-Log:
  10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
  10-bit 4:2:0 (H.264/H.265)
  HLG/D-Log M:
  10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
  10-bit 4:2:0 (H.265)
• Medium Tele Camera
  Normal:
  10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
  8-bit 4:2:0 (H.264/H.265)
  HLG/D-Log M:
  10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
  10-bit 4:2:0 (H.265)
• Tele Camera
  Normal:
  10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
  8-bit 4:2:0 (H.264/H.265)

  Only the Cine version supports ProRes recording.

Digital Zoom (only in Normal Video Mode and Explore Mode):

• Hasselblad Camera: 1-3x
• Medium Tele Camera: 3-7x
• Tele Camera: 7-28x

Gimbal

Stabilization:

• 3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range:

• Tilt: -140° to 50°
• Roll: -50° to 50°
• Pan: -23° to 23°

Controllable Range:

• Tilt: -90° to 35°
• Pan: -5° to 5°

Max Control Speed (tilt):

• 100°/s

Angular Vibration Range:

• Hovering Without Wind: ±0.001°
• Normal Mode: ±0.003°
• Sport Mode: ±0.005°

Sensing

Sensing Type:

• Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

Forward:

• Measurement Range:
  0.5-20 m
• Detection Range:
  0.5-200 m
• Effective Sensing Speed:
  Flight Speed ≤ 15 m/s
• FOV:
  Horizontal 90°, Vertical 103°

Backward:

• Measurement Range:
  0.5-16 m
• Effective Sensing Speed:
  Flight Speed ≤ 12 m/s
• FOV:
  Horizontal 90°, Vertical 103°

Lateral:

• Measurement Range:
  0.5-25 m
• Effective Sensing Speed:
  Flight Speed ≤ 15 m/s
• FOV:
  Horizontal 90°, Vertical 85°

Upward:

• Measurement Range:
  0.2-10 m
• Effective Sensing Speed:
  Flight Speed ≤ 6 m/s
• FOV:
  Front and Back 100°, Left and Right 90°

Downward:

• Measurement Range:
  0.3-18 m
• Effective Sensing Speed:
  Flight Speed ≤ 6 m/s
• FOV:
  Front and Back 130°, Left and Right 160°

Operating Environment:

• Forward, Backward, Left, Right, and Upward:
  Surfaces with discernible patterns and adequate lighting (lux > 15)
• Downward:
  Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)

Video Transmission

Video Transmission System:

• O3+

Live View Quality:

• Remote Controller:
  1080p/30fps, 1080p/60fps

Operating Frequency:

• 2.400-2.4835 GHz
• 5.725-5.850 GHz

Transmitter Power (EIRP):

• 2.4 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)
• 5.8 GHz:
  < 33 dBm (FCC)
  < 30 dBm (SRRC)
  < 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference):

• FCC: 15 km
• CE: 8 km
• SRRC: 8 km
• MIC: 8 km
  Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.

Max Transmission Distance (unobstructed, with interference):

• Strong Interference: Urban landscape, approx. 1.5-3 km
• Medium Interference: Suburban landscape, approx. 3-9 km
• Low Interference: Suburb/seaside, approx. 9-15 km
  Data tested under FCC standards in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Transmission Distance (obstructed, with interference):

• Low Interference and Obstructed by Buildings: approx. 0-0.5 km
• Low Interference and Obstructed by Trees: approx. 0.5-3 km
  Data tested under FCC standards in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Download Speed:

• O3+:
  5.5 MB/s (with DJI RC-N1 Remote Controller)
  15 MB/s (with DJI RC Pro)
  5.5 MB/s (with DJI RC)
• Wi-Fi 6: 80 MB/s*
  * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the internal storage. Download speeds may vary depending on the actual conditions.

Lowest Latency:

• 130 ms (with DJI RC-N1 Remote Controller)
• 120 ms (with DJI RC Pro)
• 130 ms (with DJI RC)
• Depending on the actual environment and mobile device.

Antenna:

• 4 antennas, 2T4R

Battery

Capacity:

• 5000 mAh

Weight:

• 335.5 g

Nominal Voltage:

• 15.4 V

Max Charging Voltage:

• 17.6 V

Type:

• Li-ion 4S

Energy:

• 77 Wh

Charging Temperature:

• 5° to 40° C (41° to 104° F)

Charging Time:

• Approx. 96 minutes
  Use the included data cable of the DJI 65W Portable Charger.
• Approx. 70 minutes
  Use the DJI 100W USB-C Power Adapter and DJI Mavic 3 Series 100W Battery Charging Hub.

Charger

Input:

• DJI 65W Portable Charger:
  100-240 V (AC), 50-60 Hz, 2 A
• DJI 100W USB-C Power Adapter:
  100-240 V (AC), 50-60 Hz, 2.5 A

Output:

• DJI 65W Portable Charger:
  USB-C:
  5 V, 5 A
  9 V, 5 A
  12 V, 5 A
  15 V, 4.3 A
  20 V, 3.25 A
  5-20 V, 3.25 A
• USB-A:
  5 V, 2 A
• DJI 100W USB-C Power Adapter:
  Max 100 W (total)
  When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.

Rated Power:

• DJI 65W Portable Charger: 65 W
• DJI 100W USB-C Power Adapter: 100 W

Battery Charging Hub

Input:

• USB-C: 5-20 V, max 5 A

Output:

• Battery Port: 12-17.6 V, max 5 A

Rated Power:

• Battery Charging Hub: 65 W
• Battery Charging Hub (100W): 100 W

Charging Type:

• Three batteries charged in sequence.

Compatibility:

• DJI Mavic 3 Intelligent Flight Battery

Car Charger

Input:

• Car Power Input:
  12.7-16 V, 6.5 A, rated voltage 14 V (DC)

Output:

• USB-C:
  5 V, 5 A
  9 V, 5 A
  12 V, 5 A
  15 V, 4.3 A
  20 V, 3.25 A
  5-20 V, 3.25 A
• USB-A:
  5 V, 2 A

Rated Power:

• 65 W

Charging Temperature:

• 5° to 40° C (41° to 104° F)

DJI Mavic 3 Pro

× 1

DJI RC Pro

× 1

DJI RC Pro Control Sticks (Pair)

× 1

DJI Mavic 3 Series Intelligent Flight Battery

× 3

DJI Mavic 3 Series Low-Noise Propellers (Pair)

× 6

DJI 100W USB-C Power Adapter AC Power Cable*

× 1

DJI 100W USB-C Power Adapter

× 1

USB-C to USB-C Cable

× 2

DJI Mavic 3 Battery Charging Hub (100W)

× 1

DJI Mavic 3 Pro Storage Cover

× 1

DJI Mavic 3 Pro ND Filters Set (ND8/16/32/64)

× 1

DJI Shoulder Bag

× 1
