CZI TK300 Tether Power Supply System - Cloud City Drones

CZI TK300 Tether Power Supply System

by CZI
SKU TK300
Sold out
$12,399.00 - $12,399.00
$12,399.00
$12,399.00 - $12,399.00
$12,399.00
Availability:
Out of stock

⚠️ This item cannot be canceled or returned.

Key Features

Long endurance
Ground 3KW power
Sustainable power supply for drones
Long hovering time
Multiple Power Supply
Accumulator power supply
220V mains power supply
Generator power supply

Compatibility

Matrice 300 RTK
Matrice 350 RTK

In the Box

TK300 Drone End
TK300 Ground End
User Manual
CZI 1-Year Limited Warranty

New generation tether power supply system - TK300 is coming with fully upgraded. The weight is significantly reduced, the IP protection level is increased, two transportation mode is flexible and easy to use in various special scenes. The unique foldable waterproof stand, combined with working lighting makes the power system easily satisfies the night operation. TK300 includes two parts: a power supply drone end and an integrated power supply ground end. The TK300 can convert single-phase or three-phase AC power into DC high voltage and transmits it to the onboard power supply through a high-performance nickel alloy power supply cable to continuously supply power to the drone. With manual and automatic cable retrieve options, highly integrated ground power supply, high-performance power supply cable, and automatic cable retrieve device. It is light, portable, and highly protective. It can effectively reduce the impact and bending of the cable, and the cable is convenient to be retracted and released. TK300 tether power supply system adapts to DJI's full range of industrial drones, providing up to 80 meters(customized 110 meters) of the power supply cable. It can combine with CZI illumination light and high-power gimbal searchlight and so on to fulfill the need for long-time and large-area emergency lighting, monitoring, and rescue scenes.

Power supply drone end
• 134 x 92 x 97mm
• 515g
• Over temperature protection: 80 Degrees C
• Overcurrent protection: Automatic
• protection of airborne power supply when output current > 65A

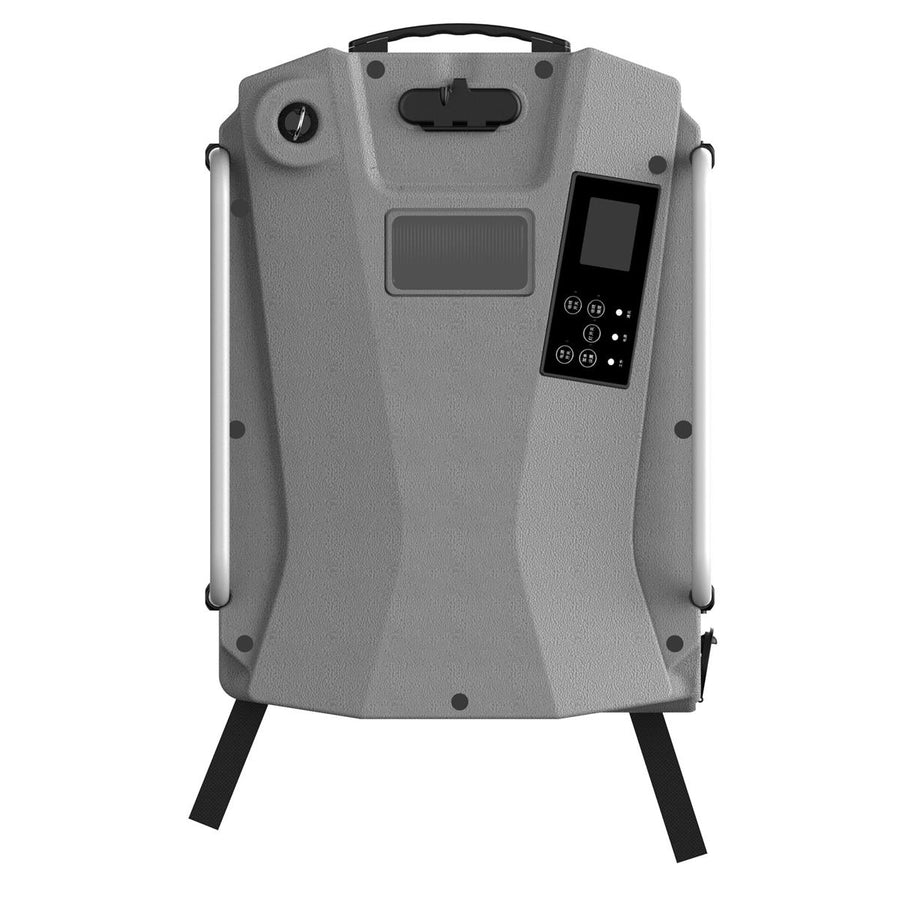

Integrated power supply ground end
• 560 x 390 x 260mm, 13kg
• Backpack, Handheld, Portable
• Ground placement: 2 Folding brackets
• Work Lighting
• Cable Length 110M
• Power Rating: Rated 3.0KW
• Rated input voltage: AC 220 V +/-10%
• Operating temperature: -20 Degrees C-+50 Degrees C

220v AC
Weight≤13kg
560*390*260mm
400V DC
3kw
Carrying/Handling
80m(Optional 30m extension cable)
DJI M300 / M350
Bluetooth
No
Automatic protection of on-board power supply when output current ＞65A
- Foldable Quick Release Waterproof Bracket
- LED near-field light (white constant, red and blue burst)
- Energy storage device
- 220V Utility
- Alternators
3.5-inch high brightness display
(power output, light switch, take-up strength and other info)
