CZI LP12 Searchlight & Broadcasting System for M30 (Demo Unit)

CZI LP12 Searchlight & Broadcasting System for M30 (Demo Unit)

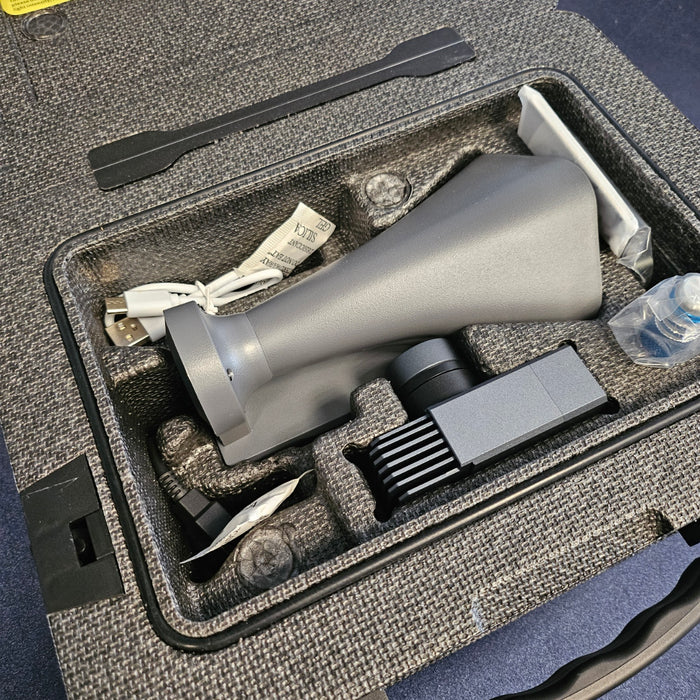

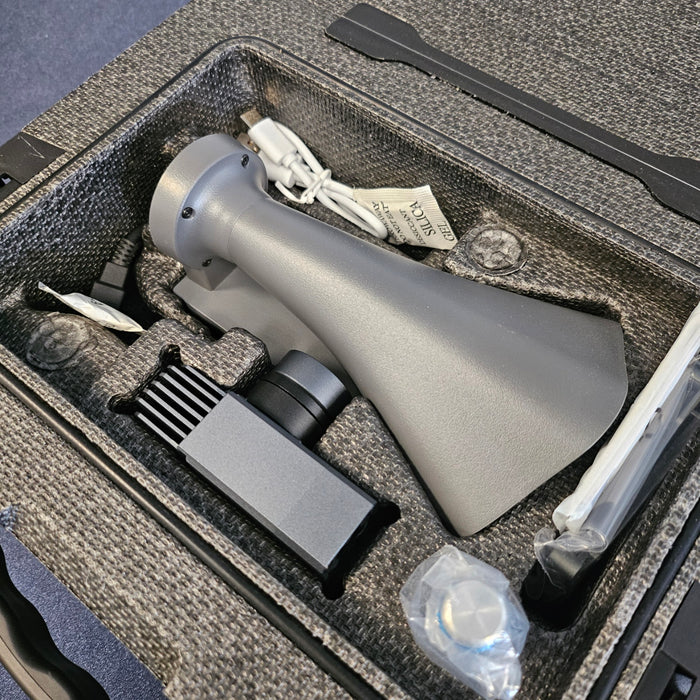

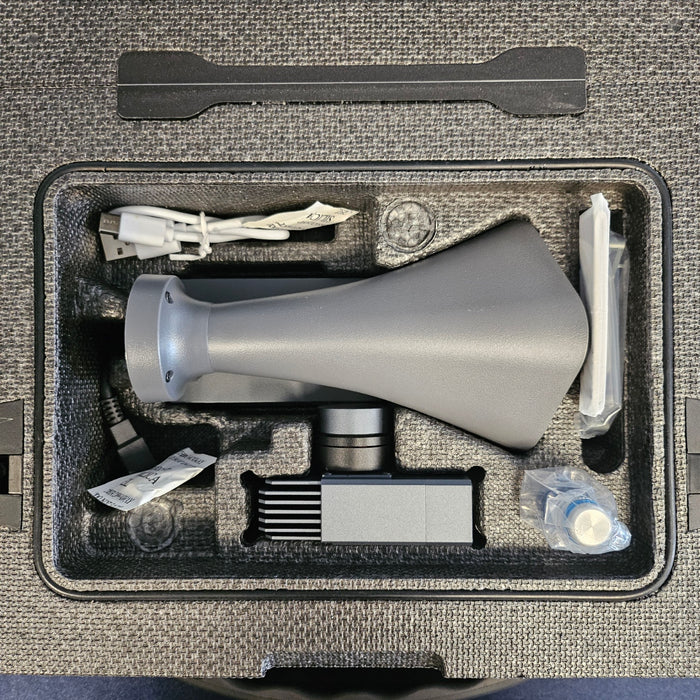

• 3-Axis CZI CZI LP12 Searchlight & Broadcasting System for M30
• Upward Gimbal Mounting Plate
• Upward Gimbal Mounting Plate Screws

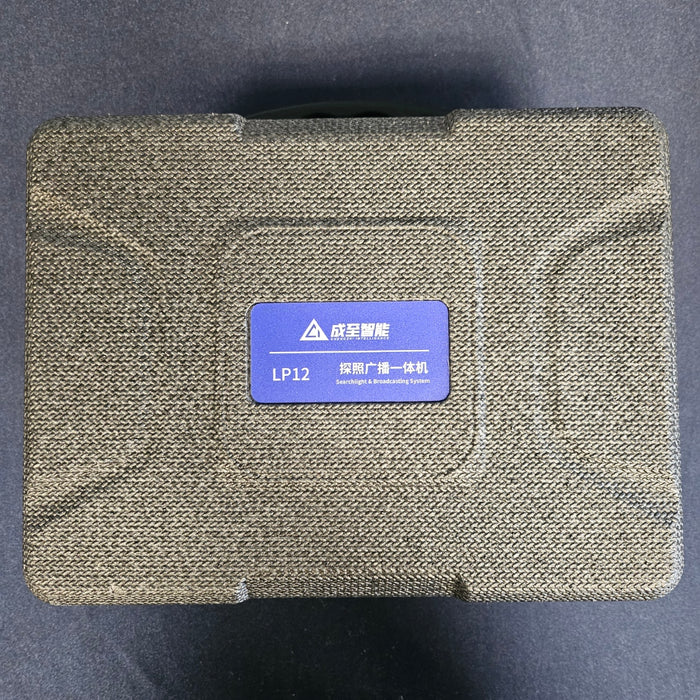

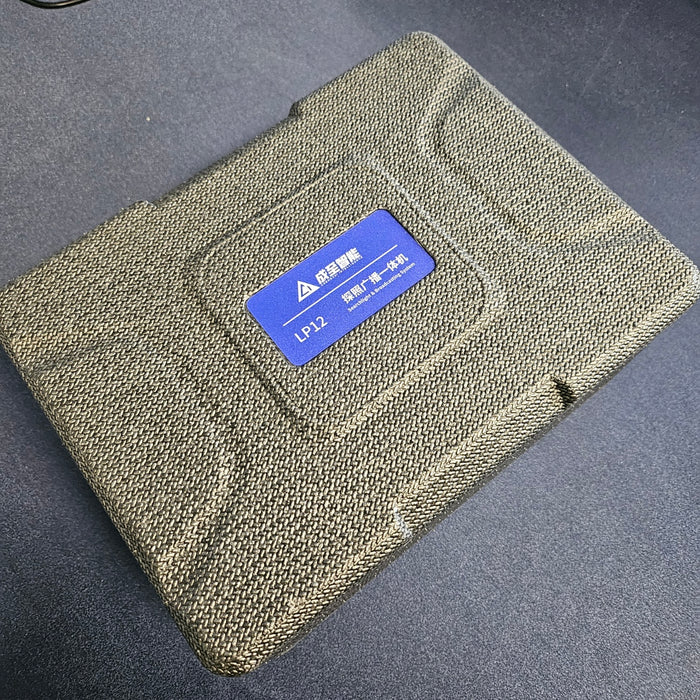

• Case
• Manual

Production Date：2024-05

Priced to move.

Questions?   We have answers and here to assist. Cloud City Drones

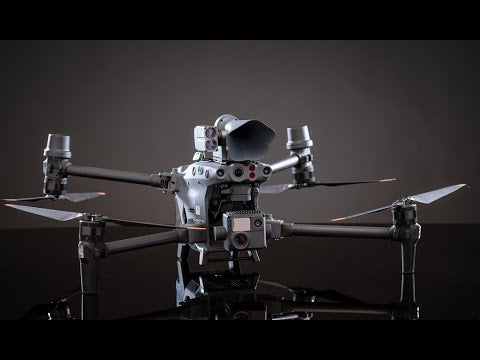

The CZI LP12 Searchlight & Broadcasting System for the DJI Matrice M30 Series.

LP12 is a searchlight and broadcasting integrated payload designed specifically for the DJI Matrice 30 drone model. With its streamline design, the CZI LP12 searchlight and speaker pushes the limits of product performance while taking characterized appearance into account, and effectively reduces wind resistance and improves the duration of flight.

The CZI LP12 searchlight and speaker is the most efficient lighting and broadcasting payload product of CZI so far, combining the imaging optics of the Gimbal Light Series, with the LRAD long distance broadcasting technology of the Megaphone Series, extremely light weight, and small size. Weighing only 270g, it has an effective illumination distance up to 100m and an effective broadcasting distance of 200m, which can meet the operational needs of security patrols and outdoor search and rescue scenarios. This DJI M30T spotlight is deeply integrated with the DJI Pilot, allowing quick access to all broadcast and light functions, making it more convenient to operate.

• CZI LP12 Features
• Designed for Brand-new DJI M30
• Pushing the industrial limits of lightweight design with only 270g
• Streamline Aesthetic design Effectively reduces wind resistance
• Quick mount and dismount for easy use
• Effective sound distance 200m
• Gimbal synchronization pitching
• Effective illumination distance 100m
• Day and Night patrol
• Mountain / Forest search and rescue

MODEL

LP12

Electrical interface

DJI OSDK

Weight

270g ( without quick-release bracket) 283g (With quick-release bracket)

Dimensions/mm

L162* W111*H75

Searchlight power/W

Regular mode: 30W
Ultra bright mode&Flashing mode: 40W

Broadcasting power/W

15

Supply voltage/V

24

Luminous flux/lm

2000±3%

Searchlight FOV/°

13

Illumination distance/m

150

130

100

50

Spot diameter/m

34

29.6

22.8

11.4

Illuminated area/m²

917

688

407

102

Central illuminance/Lux

1.7

2.5

4.5

20

Controlled rotation range of the gimbal

Pitch

-120°~+45°

Maximum sound pressure/dB

120

Effective broadcast distance/m

200m@74dB; 350M@69dB

Broadcast method

Live broadcasting
Upload the recording
Audio file playing
Text to speech (supports multi-language) Background sound

Audio format

mp3/wav/m4a/flac/aac

APP support

CZZN Pop-up window/DJI Pilot

Operating temperature

-15°C~+40°C
