CZI C30N Night Vision Gimbal Camera

CZI C30N

Ultra Vision Surveillance
Designed for Stealth Surveillance day and night.

Redefining Enterprise use level payload.

4x High-Resolution Thermal Camera

A picture-perfect clarity of details.
• 55mm Thermal Camera
• 1280 Resolution Thermal Camera

Clarity 2 times better than the industry's average thermal camera.
The effective detection distance to the human body is 1000 meters.

Brilliant colors and insight into objects.
Pre-setting 10 thermal to true color palettes

Ultra Vision Visible Light Camera
Full HD up to 30X enforced Optical Zoom Long Focal Length Equivalent 955mm.

Up to 400 meters Distance Infrared Spotlight.
Mainly to go with a Visible Light Camera better effect of Spotlight for Night Vision Mode.

Highly Precised 3 axis stabilization enhanced Gimbals
3 axis stabilization enhanced gimbals, effectively eliminating Camera bumps and shakes.

21 Tops Algorithms
Nvidia AI chips embedded for more possibility.

Mist Elimination
Heating control components embedded to cope with environment automatically for elimination of the mist on lens.

Providing higher image resolution from distance
• Dual Laser
• Ultra vision
• High Algorithms
• Mist Elimination
• Thermal

Product Name C30N
Size 172×152×191 mm
Weight ≤1500g

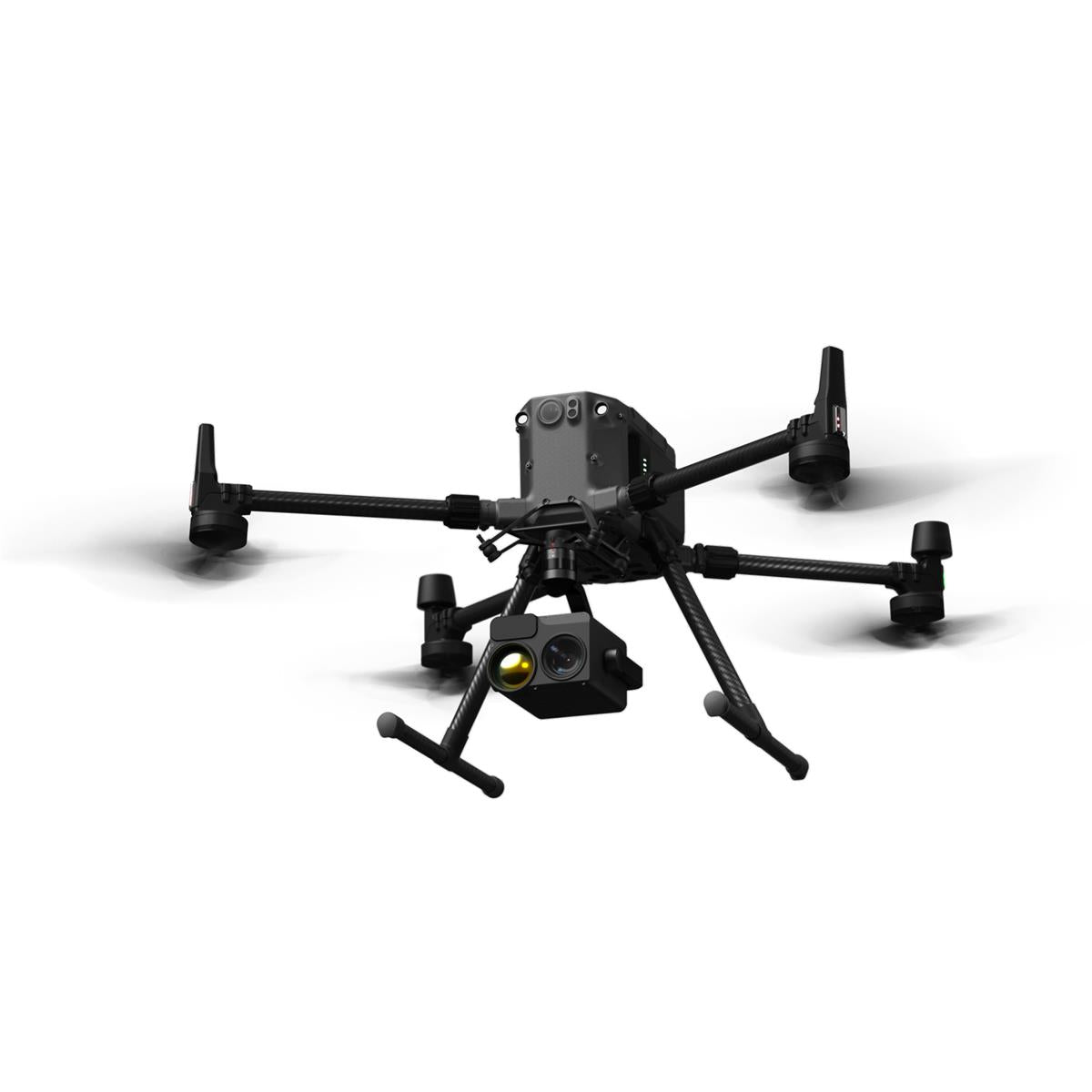

Supported Aircraft Matrice 300 RTK
Gimbal
Angular Vibration Range ±0.01° Controlled rotation range Horizon:±95°,Pitch:-120°to +25° Structural control range Horizon:±100°,Pitch:-132.5°至+42.5°,Roll:-90°to +60° Maximum control speed Horizon:50° /s,Pitch:50° /s
Zoom Camera
Sensor
1/1.8" CMOS; Effective Pixels: 4M
Focal Length:6.5-162.5 mm
Lens
Aperture:f/1.6-f/4.8
Focus: 10 cm to ∞ (wide); 1.2 m to ∞ (tele)
Focus Mode MF/AF-C/AF-S
Exposure Mode Manual, Auto
Exposure Compensation ±7.0(1.5dB increments)
Electronic Shutter Speed
Photo:1-1/10000 s
Video:1/1-1/10000 s
Photo/Video (Night Scene):1/15-1/8000 s
Video Resolution 1920×1080@30fps
Video Format MP4
Max Image Size 1920×1080
Photo Format JPEG
Tele Infrared Thermal Camera
Thermal Imager Uncooled vanadium oxide (VOx) infrared focal plane detector
Lens
Aperture:f/1.1
Focus: 5 m to ∞
Equivalent digital zoom rate 4x 8x 16x 32x 64x
Video Resolution 1280×1024 @ 30 fps
Video Format MP4
Image Resolution 1280×1024
Image Format JPEG
Pixel Pitch 12 μm
Spectral Band 8-14 μm
Sensitivity (NETD) ≤50 mK @ f/1.0
Palette White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Laser Range Finder
Wavelength 905 nm
Measuring Accuracy <400m 士1m>400m士0.4%
Measuring Range 10-1200 m
Repetition frequency >25Hz~30KHz(frequency adaptive)
Storage
Supported microSD Cards Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
Supported File System exFAT
Environment
Operating Temperature -20° to 50° C (-4 to 122°F)
Storage Temperature -20° to 60° C (-4 to 140°F)
