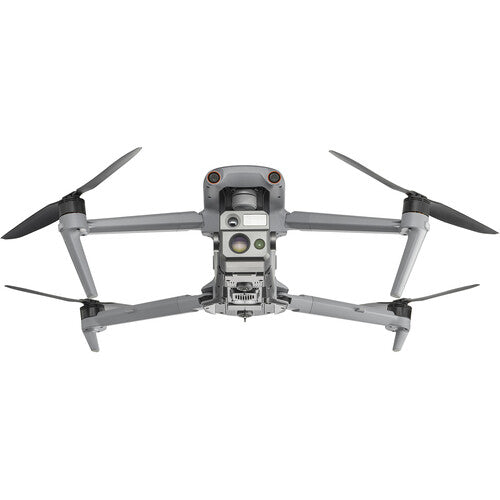

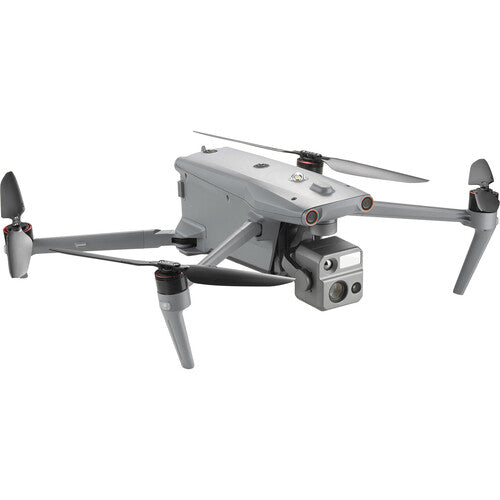

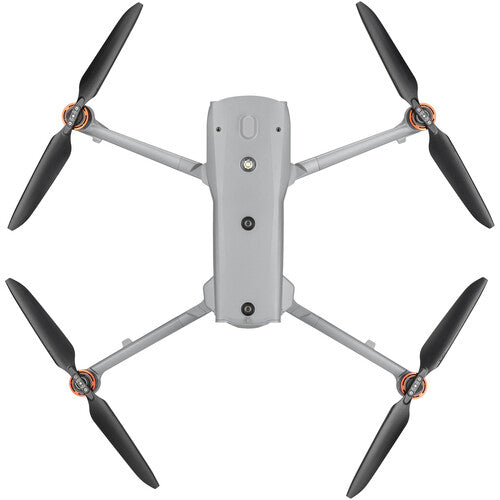

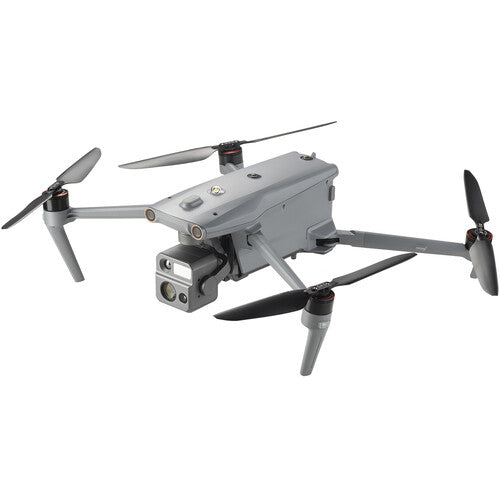

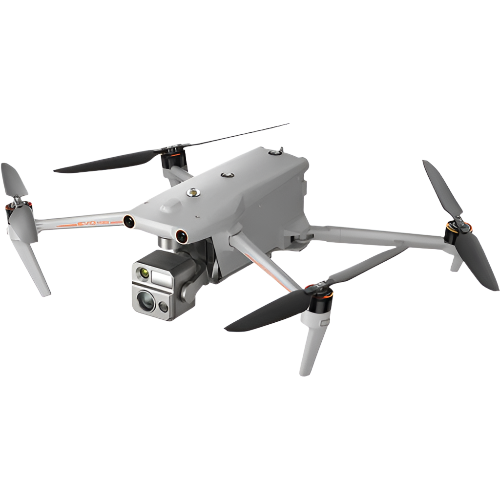

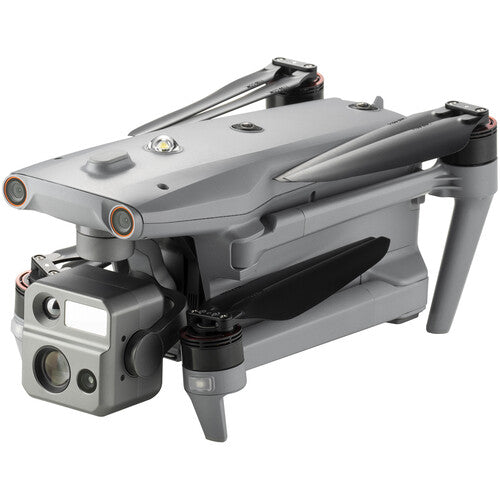

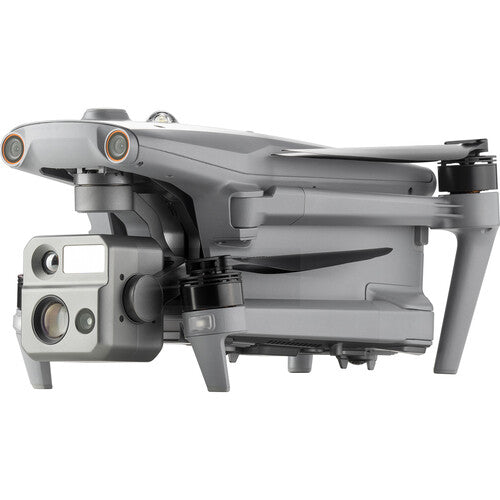

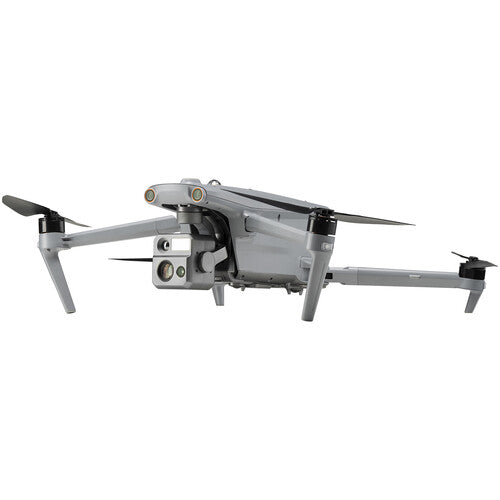

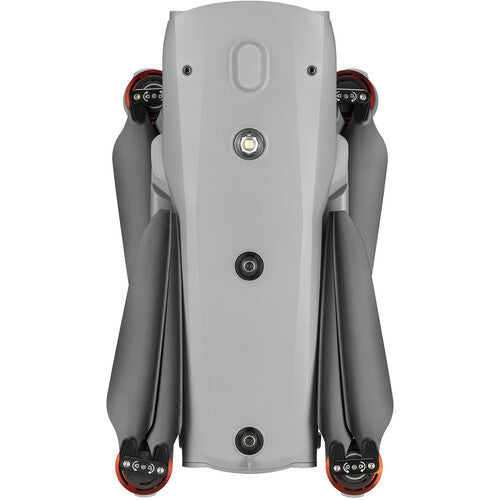

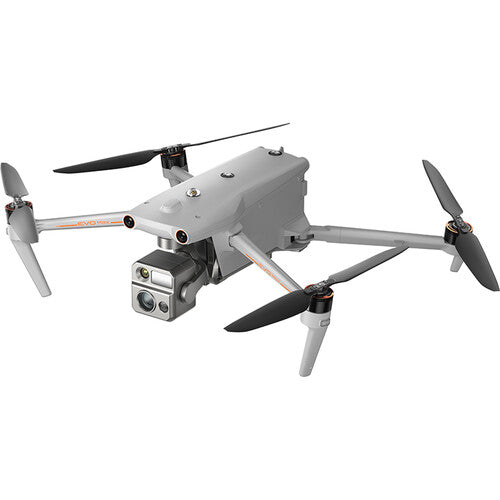

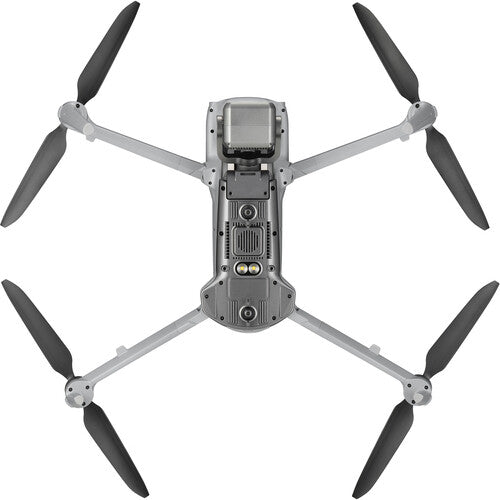

The Autel EVO Max 4N bundle brings powerful technologies and advanced autonomy to users. The Autel EVO Max 4N assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make a flight in GPS-unavailable areas possible, and the incredible new thermal payload unlocks new object identification and tracking scenarios. With a foldable, weather-resistant design, the Autel EVO Max 4N bundle is as portable as it is capable. Purchase this drone bundle online.
PRODUCT HIGHLIGHTS
- Skylink 3.0 is a system featuring 6 antennas, 4 frequency bands, AES-256 encryption, and optional 4G integration to provide users with the most advanced flight capabilities ever in an EVO.
- The EVO Max 4N uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the users to fly confidently near power lines, critical structures, and complex areas.
- The new A-Mesh system enables drone-to-drone autonomous communication, connection, and collaboration.
- The Autel EVO Max 4N can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
- With A-Mesh, multiple aircraft in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
- Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
- Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

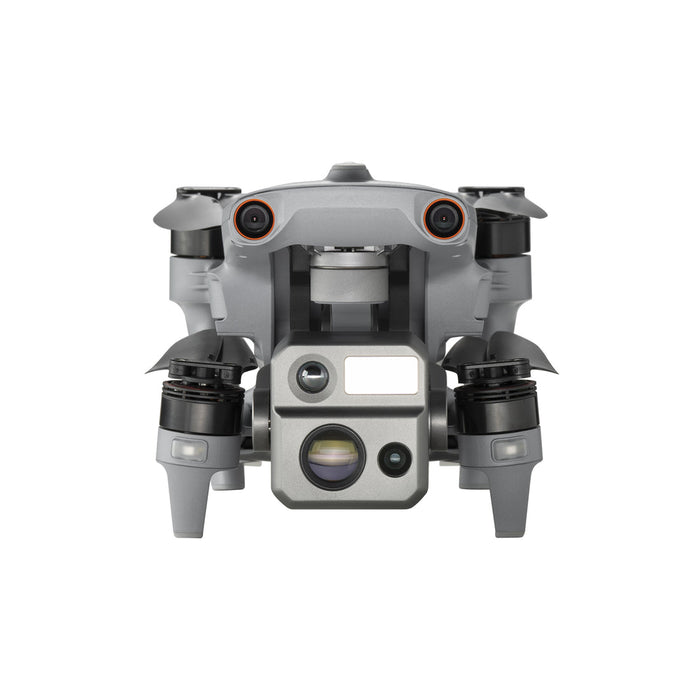

- The 4N payload integrates wide-angle, zoom, and thermal cameras with a laser rangefinder to meet a wide range of workflow requirements.
- Zoom Camera: Supports 8K 10x optical zoom, and 160x hybrid zoom with clear details on targets up to 1.24 miles away
- Wide Camera: A 50MP camera with the next generation of Moonlight Algorithm 2.0 boosts post-processing and allows the pilot to capture crisp, detailed images in low-light environments.
- Thermal camera: Equipped with 640x512 high-resolution thermal imaging camera, 30 fps, and 16x digital zoom Laser Rangefinder: Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.
- The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4N's mission capability.
- 3D Map Planning: Plan, create, and execute a 3D waypoint mission plan on a 3D map.
- Mission Reproduction: With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max 4N will automatically
- Quick Mission: Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
- Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
- Encrypted Data Storage: Supports AES-256 encryption* for photos, videos, and flight logs, which are password-protected.
- The Autel SDK developer platform is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Aircraft
Weight 3.57 lbs (1620g, battery and gimbal included)
Max. Takeoff Weight 4.41 lbs (1999 g)
Dimensions 576*660*149 mm(fold, incl. propellers)
340*407*148 mm(fold, excl. propellers)
257*136*133 mm (unfold, excl. propellers)
Diagonal Wheelbase 464mm
Max Ascent Speed 8m/s
Max Descent Speed 6m/s
Max Horizontal Speed (windless near sea level) 23m/s
Maximum Takeoff Altitude 13,124 ft (4000m)
Max Flight Time (windless) 42 mins
Max Hover Time (windless) 38 mins
Max Wind Resistance 27mph*
*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
IP Rating IP43
Max Tilt Angle 35°
Max Angular Velocity Pitch: 300°/s; Yaw: 120°/s
Operating Temperature -20℃～+50℃
Operating Frequency 2.4G/5.2G*/5.8G/900MHz*
*5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
GNSS GPS+Galileo+BeiDou+GLONASS
Transmitter Power (EIRP) 2.4GHz: <33dBm（FCC）, <20dBm(CE/SRRC/MIC)
5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE)
5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)
5.25-5.35GHz: <30dBm(FCC), <23dBm(SRRC/MIC)
Hovering Accuracy Vertical:
±0.1 m (Vision System enabled);
±0.5 m (GNSS enabled);
±0.15 m (RTK enabled);
Horizontal:
±0.3 m (Vision System enabled);
±0.5 m (GNSS enabled);
±0.1 m（RTK enabled）；
Gimbal
Mechanical Range Pitch: -135° to 45°
Roll: -45° to 45°
Yaw: -45° to 45°
Controllable Range -90° to 30°
Stable system 3-axis mechanical gimbal (pitch, roll, pan)
Max. Control Speed (pitch) 200º/s
Angular Vibration Range <0.005°
Starlight Camera
Sensor Effective Pixels:2.3M
Lens Focal length: 35mm (equivalent: 41.4mm)
Zoom Range:1-8x(synced zoom supported)
Exposure Compensation ±3EV 0.3EV/step
ISO Range Auto:IOS100-ISO450000
Super Sensitive Mode:Auto IOS100-ISO450000
Electronic Shutter Speed Photo: 8s ~ 1/8000
Video: 1s ~ 1/8000
Max Photo Size 8000×6000
Max. Video Resolution 7680×4320
Wide Camera
Sensor 1/1.28 CMOS, Effective pixels: 50M, Night mode: 12.50M
Lens DFOV：85°
Focal length: 4.5 mm (equivalent: 23 mm)
Aperture: f/1.9
AF motor: 8-wire SMA, PDAF focus
Exposure Compensation ±3EV 0.3EV/step
ISO Range Auto:
Photo: ISO100~ISO6400
Video: ISO100~ISO64000 (Night mode: up to ISO64000)
Manual:
Photo: ISO100~ISO12800
Video: ISO100~ISO6400
Electronic Shutter Speed Photo: 8s ~ 1/8000
Video: 1s ~ 1/8000
Max. Video Resolution 3840×2160
Photo Size 8192*6144
4096*3072
Thermal Camera
Thermal Imager Uncooled VOx Microbolometer
Lens DFOV: 61°
Aperture: 9.1mm
Focus: f/1.0
Infrared Temperature Measurement
Accuracy 26.6~37.4 ℉ or reading ±3% (using
the larger value) @ambient
temperature -4℉ to 140℉
Video Resolution 640*512
Photo Size 640*512
Pixel Pitch 12 um
Temperature Measurement Method Center measurement, pot measurement, Rectangular measurement
Temperature Measurement Range -4℉ to 302℉, 32℉ to 1022℉ (-20°C to
150°C, 0 to 550°C)
Temperature Alert High and low temperature alarm thresholds, reporting coordinates and temperature values
Palette White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot
Laser Rangefinder
Measurement Accuracy ±1m
Measuring Range 1.2km
Image transmission
Operating Frequency 2.4G/5.2G*/5.8G/900MHz*
*5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
Max Transmission Distance
(unobstructed, free of interference) 20km(FCC), 8km(CE)
Independent Networking 7.9-inch Smart Controller
Transmitter Power (EIRP) 2.4GHz: <33dBm（FCC）, <20dBm(CE/SRRC/MIC)
5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE)
5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)
5.25-5.35GHz: <30dBm(FCC), <23dBm(SRRC/MIC)
Autonomy
Non-GPS Hovering and Manual Flight Indoor: Horizontal error ≤3cm （At least have texture at one direction）
Outdoor:
Daytime: Within 500m flight height, horizontal error < 0.01*height
Night: Manual flight is controllable within 100m flight height
Non-GPS Return-to-Home Within 500m flight height, horizontal error of Return-to-Home point < 30cm
Automatic Obstacle Rerouting High Speed Obstacle Rerouting: Flight speed up to 45mph(20m/s) when Min. safety distance to obstacle is 4.9ft (1.5m)
High Precision Obstacle Rerouting: Flight speed could reach 6.7mph(3m/s) when Min. safety distance to obstacle is 1.6ft (0.5m)
Multi-target Recognition and Tracking Target identification types: people, vehicles, boats
Number of targets detected: 64
Comprehensive recognition accuracy: > 85%
