DJI AL1 Spotlight for Matrice 4 Series

DJI AL1 Spotlight for Matrice 4 Series

by DJI
SKU CP.EN.00000579.01
Reserve Now
$339.00 - $339.00
$339.00
$339.00 - $339.00
$339.00

⚠️ This item cannot be canceled or returned.

Estimated Availability

Please contact our support team for details.

Request a quote

Key Features


The spotlight supports two modes: always-on and strobe, providing clear illumination of subjects. It also links with the gimbal.

Compatibility

DJI Matrice 4 Series

In the Box

Spotlight
Spare Screw (2)
Hex Key

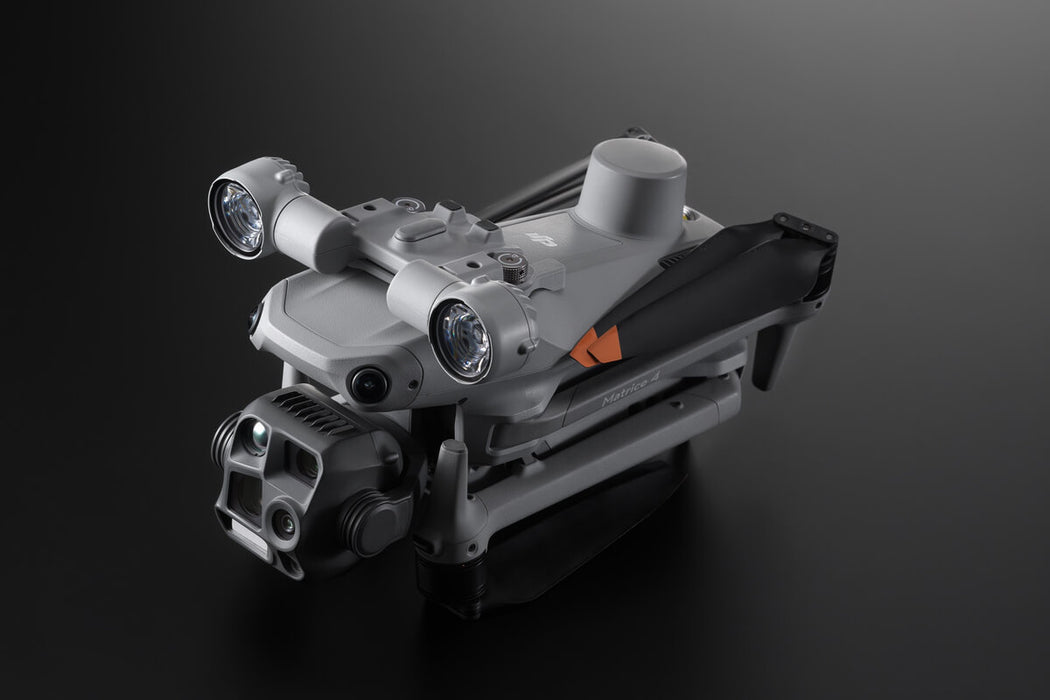

The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. [1] Additionally, it can intelligently link with the gimbal, following the camera's movements to ensure the illuminated area matches the camera's view. It also offers a wide fov lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.

Tips

1. Tighten the screws to ensure secure installation. When installing on the aircraft for long-term use, use the included hex key to tighten the screws again after installation.

2. Activate the spotlight following the app prompts after installation. If a firmware update is available, please upgrade to the latest version promptly.

3. The performance of the Matrice 4 Series aircraft's propulsion and vision system will be affected after the spotlight is mounted. Fly with caution.

4. DO NOT point the spotlight directly at people’s eyes.

5. The spotlight may become hot after prolonged operation. Please be careful to avoid burns.


Weight: 99 g (including bracket）

Approx. 91 g (excluding bracket)

95×164×30 mm (L×W×H, including bracket）

79×164×28 mm (L×W×H, without bracket)

Max Power: 32 W

Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters

Effective Illumination Angle: 23°(10% relative illuminance)

Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)

2,200 square meters @ 100 meters (10% relative illuminance, Wide fov Mode)

Modes: Always-on and strobe

Gimbal Mechanical Range (Tilt): -135° to 45°

Gimbal Controllable Range (Tilt): -90° to 35°

Max Control Speed (tilt): 120°/s

Gimbal Alignment Accuracy: ±0.1°

Operating Temperature: -4° to 122° F (-20° to 50° C)

Mounting Method: Quick-release hand-tightened screws
