CZI TK3 Tethering Station
⚠️ This item cannot be canceled or returned.
Key Features
Compatibility
In the Box
⚠️ This item cannot be canceled or returned.
Key Features

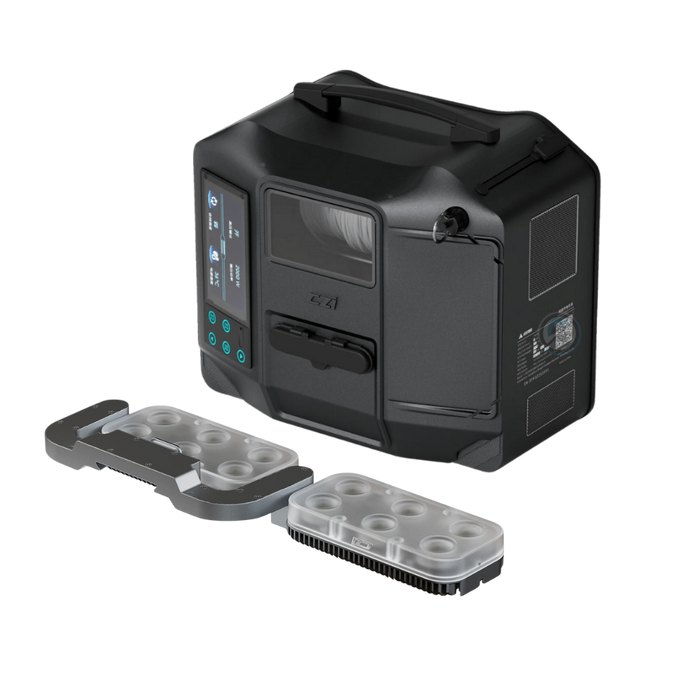

The CZI TK3 Tethering Station is the new generation of ground power systems, further optimized for size and weight.
It converts 220V AC power into 400V DC high-voltage power, which is transmitted to the drone through a high-performance nickel alloy cable. This enables the drone to realize 24-hour uninterrupted flights.

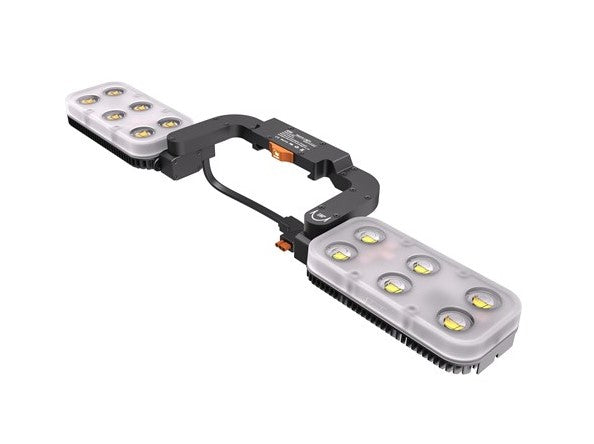

Used in conjunction with UAV matrix lights, high-power gimbal searchlights, cameras, and other mission payloads, it can meet the needs of long-time and large-area emergency lighting and monitoring in complex emergency scenarios.
TK3 & TK300 Comparison |
||
Model |
TK3 |
TK300 |
Input Volt |
☆110v~220v AC |
220v AC |
Weight/kg |
☆Weight≤7.5kg |
Weight≤13kg |
Dimension/mm |
☆356*310*229mm |
560*390*260mm |
Output Volt |
400V DC |
|
Output Power |
3kw |
|
Transportation |
☆Specialized Outdoor Backpack |
Carrying/Handling |
Cable Length |
80m(Optional 30m extension cable) |
80m(Optional 30m extension cable) |
Applicable Models |
☆DJI M300 / M350 / M30 / M30T |
DJI M300 / M350 |
Upgrade Method |
Wired/wireless OTA |
Bluetooth |
Drone-side communication pairing |
☆Yes |
No |
Overcurrent protection |
Automatic protection of on-board power supply when output current >65A |
|
Deployment Status |
- Foldable Quick Release Waterproof Bracket - LED near-field light (white constant, red and blue burst) |
|
Power supply |
- Energy storage device - 220V Utility - Alternators |
|
Info Display |
☆5-inch high-brightness display (power output, light switch, take-up strength,high-brightness, and other info) Fault specifics when occurred Power failure at the ground side, the buzzer will sound an alarm for 2 minutes. |
3.5-inch high-brightness display (power output, light switch, take-up strength, and other info) |
|
