CZI GL60 Mini Gimbal Searchlight for M30 (Demo Unit)

CZI GL60 Mini Gimbal Searchlight for M30 (Demo Unit)

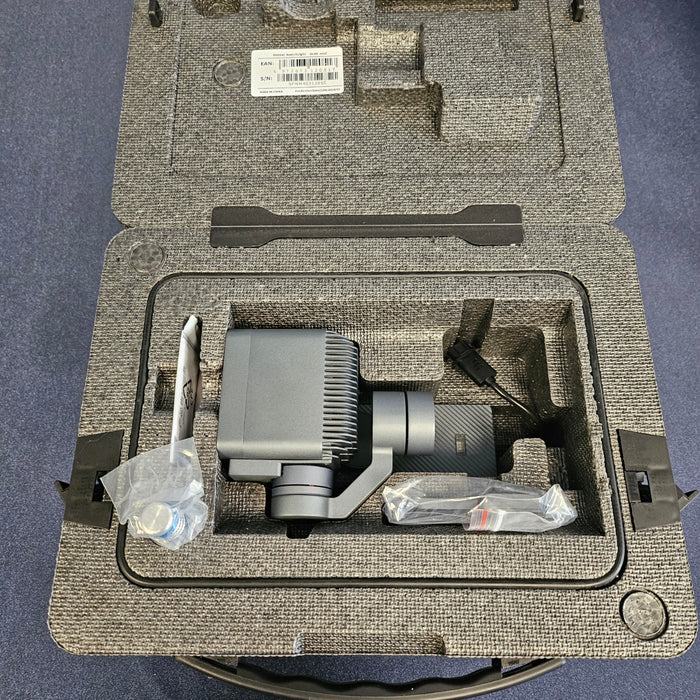

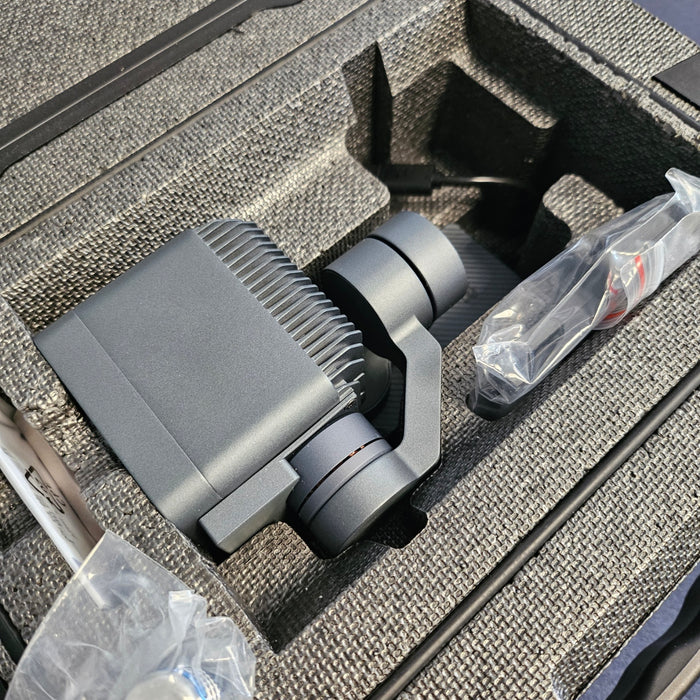

• 3-Axis CZI GL60 Mini Gimbal Searchlight for M30 (Demo Unit)
• Upward Gimbal Mounting Plate
• Upward Gimbal Mounting Plate Screws

Production Date：2024-03

Priced to move.

Questions?   We have answers and here to assist. Cloud City Drones

Looking for a powerful lighting solution to use with your DJI Matrice 30 Series?

Look no further than the CZI GL60 Mini Gimbal Searchlight! With 3-axis gimbal technology, AI Follow capabilities, and a 150m effective illumination range, this searchlight is perfect for search and rescue operations or inspections.

Model

GL60 Mini

Electrical Interface

DJI OSDK

Weight

~240g

Size

L-158mm x W-87mm x H-82mm

Total Power

65W

LED Power

60W

Supply Voltage

24V

Luminous Flux*

~7000±3% lm

FOV

13°

Illumination Distance

150m

100m

50m

Spot Diameter

34m

22.8m

11.4m

illumination Area

917m²

407m²

102m²

Central illuminance*

~7 Lux

~16 Lux

~60 Lux

Range of Rotation of the Gimbal

Pitch

TBA

Horizontal

TBA

Design Range of the Gimbal*

Pitch

-70°~ +90°(Technically)

Horizontal

±125"(Technically)

Roll

±125"(Technically)

Operating Temperature*

-20°C~ + 50°C (Technically)

Weather Rating

IPx3-IPX4

*Theoretically per the manufacturer
